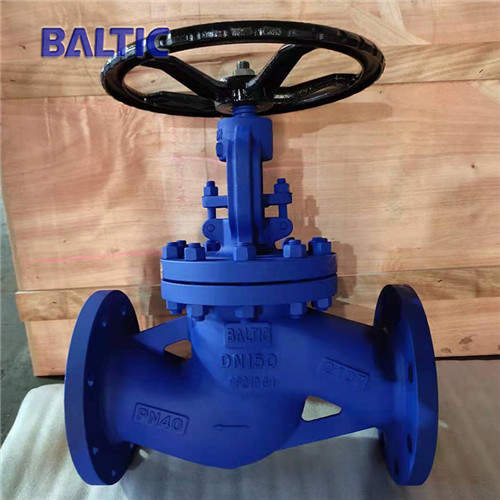

DIN 3356 GP240GH Globe Valve, Bolted Bonnet, DN150, PN40, RF

DIN 3356 GP240GH Globe Valve, Bolted Bonnet, DN150, PN40, RF

DIN 3356 GP240GH Globe Valve, Bolted Bonnet, DN150, PN40, RF

Key Specifications / Features

Model No.: Hits: 52

DIN 3356 GP240GH Globe Valve Manufacturer: DIN 3356 GP240GH Bolted Bonnet Globe Valve, DN150, PN40, RF Ends, Rising Stem, Flat Sealing, FF ASME B16.10.
Request a quote Share

Next: ASME B16.34 Full Bore Globe Valve, GP240GH, DN200, PN40

Previous: ASTM B148 C95800 Globe Valve, 4 Inch, 150 LB, ASME B16.34, RF

Detail Information

Valve descriptions
Product: DIN 3356 GP240GH Globe Valve.
Design: DIN 3356.
Body: GP240GH.
Nominal size: DN150.
Nominal class: PN40.
Connection ends: RF Flanged ends.
Face to face: ASME B16.10, EN 558-1/line 1.
Test and inspection: API 598, ISO 5208, EN 12266-1.
Stem: rising stem.
Bonnet: bolted bonnet.
Disc sealing: flat sealing.
Seat: threaded, welded seat.
Applications: electric power, petroleum refining, petrochemical engineering, etc.


Technical parameters and characteristics
Product Globe valves
Nominal diameter NPS 1/2-24 Inch DN15-DN600
Design temp.  -29℃-593℃
Design pressure Class 150-2500 PN10-PN420
Materials ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M,
ASTM A351 A890 4A(CD3MN), ASTM A351 5A(CE3MN), ASTM A351 6A(CD3MWCuN), ASTM B 148 C95800, ASTM B 148 C95500
Design standards BS 1873, ASME B16.34 DIN 3356
Face to Face ASME B16.10 EN558 series
Connection ends ASME B16.5, ASME B16.25 EN1092 series
Test standards API 598, ISO 5208 EN12266-1
Operation Hand wheel, bevel gear, electric, pneumatic
Applications Electric power, petroleum refining, petrochemical engineering, offshore oil, tap water engineering in urban construction, chemical engineering, etc.
Function 1 OS&Y, bolted bonnet, rising stem
Function 2 Short stroke for quick opening and closing
Function 3 For big size and high pressure: relief cone = internal bypass
Function 4 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 5 Body seats could be threaded seats or welded seats.
