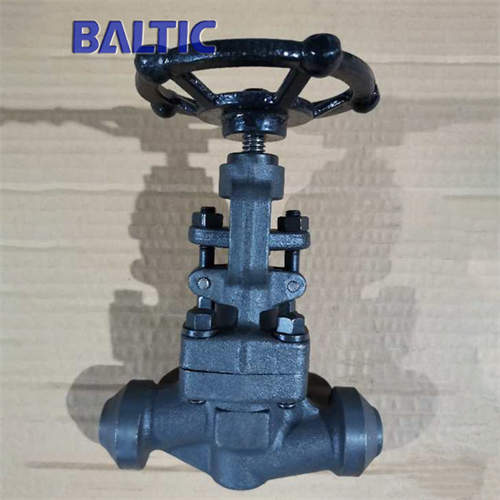

DIN 3356 Full Bore Globe Valve, S Type,1.0460, DN15, PN16, BW

DIN 3356 Full Bore Globe Valve Supplier: Full Bore Globe Valve, DIN 3356, S Type, 1.0460, DN15, PN16, BW Ends, BB, PSB, FF EN 558-1/line 1, Test EN 12266-1.

Tags:

• DIN 3356 Globe Valve
• Full Bore Globe Valve
• S Type Globe Valve
• DN15 Globe Valve
• PN16 Globe Valve
• BW Globe Valve
• Bolted Bonnet Globe Valve
• Pressure Seal Bonnet Globe Valve
• 1.0460 Globe Valve

Name: DIN small size globe valve, full bore.
Design: DIN 3356.
Body: 1.0460.
Nominal size: DN15.
Nominal class: PN16.
End connection: BW.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.

Technical Parameters and Characteristics
Product: Small size forged steel globe valve.
Nominal diameter: DN8 - DN50.
Design temperature: -196℃ - 573℃.
Design pressure: PN10 - PN160.
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard: API 602, DIN 3356.
Face to face: Manufacture standard, EN558-1/line 1.
Connection end: NPT, SW, BW, Flange.
Test standard: API 598, ISO 5208.
Operation: Hand wheel, Electric.
Application: Power station, petroleum, chemical engineering.
Function 1: Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2: Plug disc, needle disc.
Function 3: Full bore, reduce bore.
Function 4: Integral flanged ends, welded on flanged ends.
