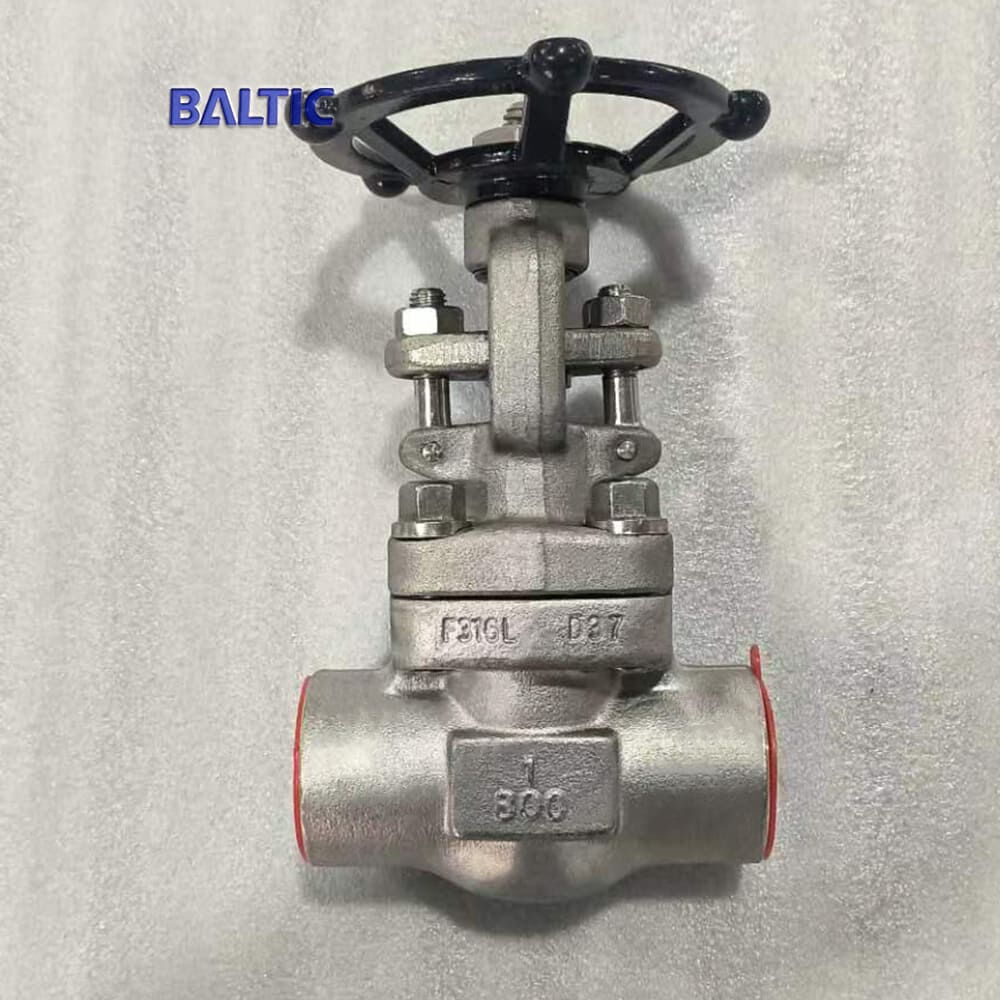

Class 800 LB Gate Valve, API 602, ASTM A182 F316L, 1 IN, SW

Class 800 LB Gate Valve, API 602, ASTM A182 F316L, 1 IN, SW

Key Specifications / Features

Model No.: BV-GTV-20250308-08 Hits: 5

As a leading API 602 gate valve manufacturer in China, we specialize in high-quality stainless steel valves designed for durability and performance. Constructed from ASTM A182 F316L stainless steel, our gate valves offer excellent corrosion resistance and reliability. Featuring a reduced bore design, they are available in a 1-inch (DN25) size and rated for Class 800 LB (PN130), making them ideal for high-pressure applications. Equipped with socket welding (SW) ends for secure and leak-free connections, these valves ensure optimal flow control in demanding industrial environments.
Request a quote Share

Detail Information

ASTM A182 F316L Gate Valves, Stainless Steel, API 602.

Valve Description:
Product Name: Small Size Gate Valve, Reduced Bore.
Design: API 602
Body: ASTM A182 F316L
Nominal Size: 1 Inch, DN25
Nominal Class: Class 800 LB, PN130
End connection: SW Ends
Face to Face: Manufacturer Standard
Test and Inspection: API 598


Technical Parameters And Characteristics

Product Item

Small Size Gate Valve

Nominal Diameter

1/4 Inch - 4 Inch

Design Temp.

 -196°C - 573°C

Design Pressure

Class 150 LB - Class 4500 LB

Material

Carbon Steel, Stainless Steel, Alloy Steel, Bronze

Design Standard

API 602, BS 5352

Face to Face

Manufacturer Standard, ASME B16.10

Connection End

NPT, SW, BW, Flange

Test Standard

API 598, ISO 5208

Operation

Hand Wheel, Electric

Application

Power Station, Petroleum, Chemical Engineering

Function 1

Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet

Function 2

Solid Wedge

Function 3

Full Bore, Reduce Bore

Function 4

Integral Flanged Ends, Welded on Flanged Ends
