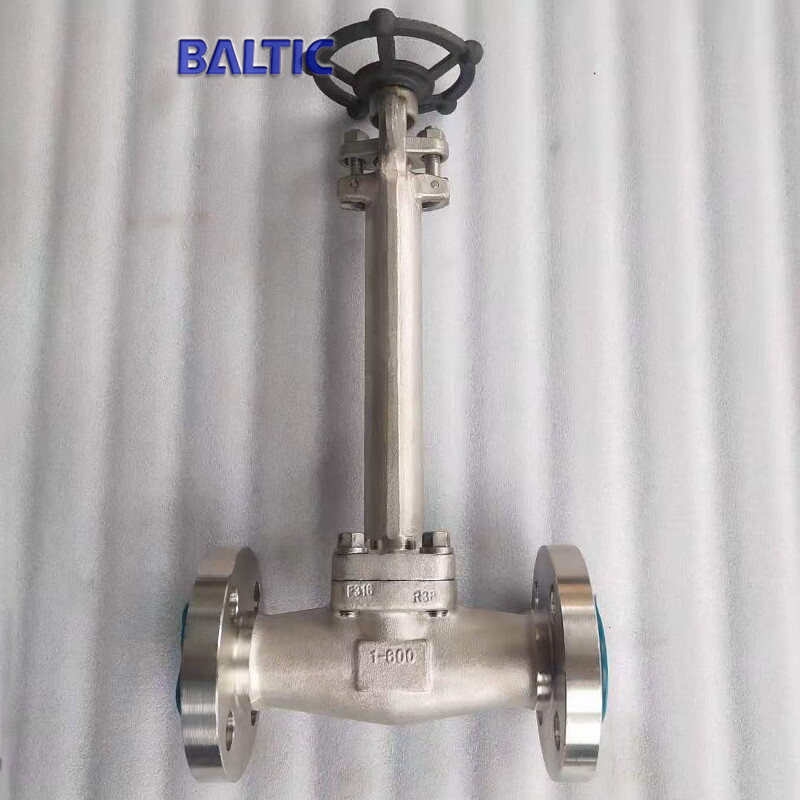

• Class 600 LB Cryogenic Globe Valve, 1 IN, API 602, A182 F316
Class 600 LB Cryogenic Globe Valve, 1 IN, API 602, A182 F316

Class 600 LB Cryogenic Globe Valve, 1 IN, API 602, A182 F316

Class 600 LB Cryogenic Globe Valve, 1 IN, API 602, A182 F316

Key Specifications / Features

Model No.: Hits: 10

Discover top-quality Class 600 LB Cryogenic Globe Valve at our factory. This valve is crafted to precision with 1 Inch size, meeting API 602 and ASTM A182 F316 standards. Made of durable Stainless Steel, it features an Extension Stem for ease of operation. With RF End, SW, BW, and Flange options, it ensures seamless integration into your systems. Order now for reliable performance in demanding environments.
Request a quote Share

Next: RF Flanged Cryogenic Globe Valve, 1-1/2 Inch, 600 LB, F304

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 1 Inch.
Nominal class: 600 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
