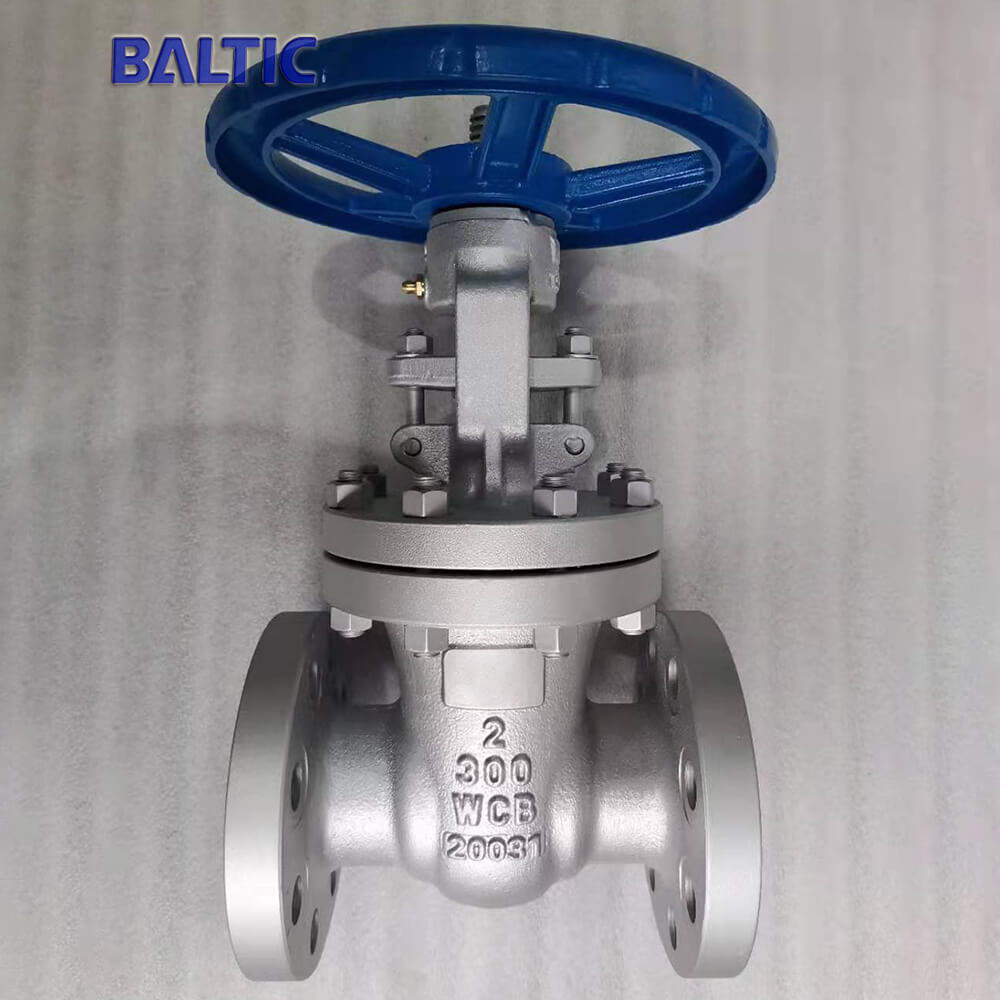

Class 300 LB Flexible Wedge Gate Valve, WCB, 2 Inch, API 600

Buy high-quality Class 300 LB wedge gate valve from a trusted manufacturer. This 2-inch valve is made of ASTM A216 WCB and has a DN50 size with a PN50 pressure rating. It meets API 600 standards and features RF flange ends. The valve is constructed with ASTM A216 WCC, ASTM A217 WC6, and ASTM A217 WC9 materials. Order now for reliable performance and durability.

Tags:

• Class 300 LB Gate Valve
• Flexible Wedge Gate Valve
• ASTM A216 WCB Gate Valve
• 2 Inch Gate Valve
• API 600 Gate Valve
• DN50 Gate Valve
• RF Gate Valve
• PN50 Gate Valve

Valve description:
Product name: Flexible wedge gate valve, class 300 series.
Design: API 600.
Material: ASTM A216 WCB.
Nominal size: 2 Inch.
Nominal class: 300 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features

Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket is to be metal sealing, RTJ ring - SS 304 for long service.
The threaded stem does not contact the medium, to avoid the possibility of corrosion

Technical Parameters and Characteristics

Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
