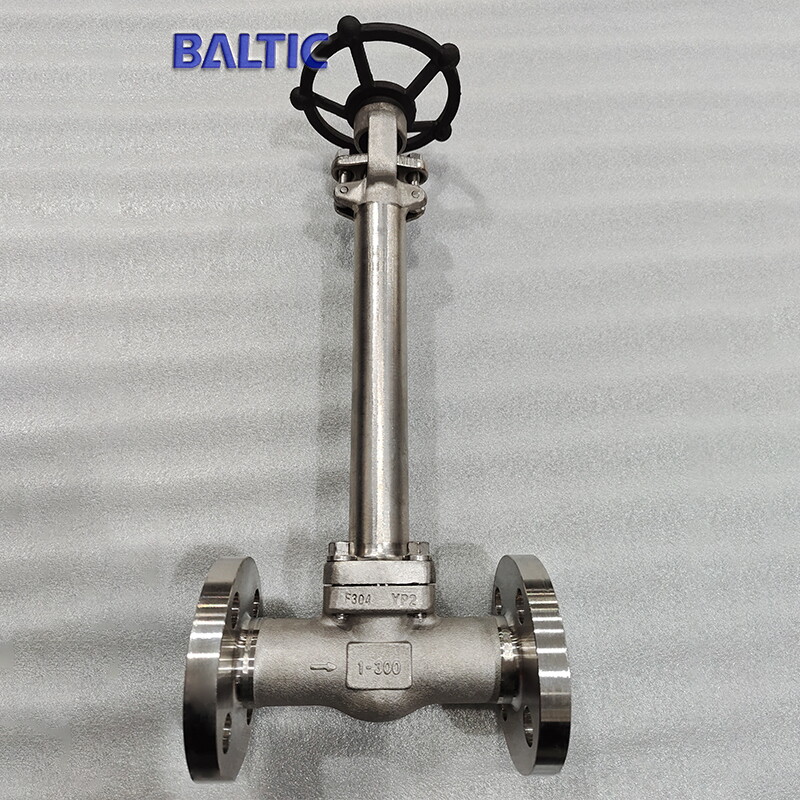

• Class 300 LB Cryogenic Globe Valve, 1 IN, ASTM A182 F304, RF
Class 300 LB Cryogenic Globe Valve, 1 IN, ASTM A182 F304, RF

Class 300 LB Cryogenic Globe Valve, 1 IN, ASTM A182 F304, RF

Class 300 LB Cryogenic Globe Valve, 1 IN, ASTM A182 F304, RF

Key Specifications / Features

Model No.: Hits: 3

Explore our top-quality Class 300 LB Cryogenic Globe Valve, crafted to precision by API 602 standards. This 1-inch valve, made from ASTM A182 F304 material, ensures durability and reliability. With a DN25 size and PN50 pressure rating, it's ideal for various industrial applications. Featuring an extension stem for convenient operation and an RF flange for secure connection, this valve comes equipped with a drip plate for added functionality. Invest in excellence with our premium cryogenic globe valve.
Request a quote Share

Next: 300 LB Cryogenic Globe Valve, 1-1/2 Inch, API 602, A182 F304

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1 Inch.
Nominal class: 300 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -196℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
