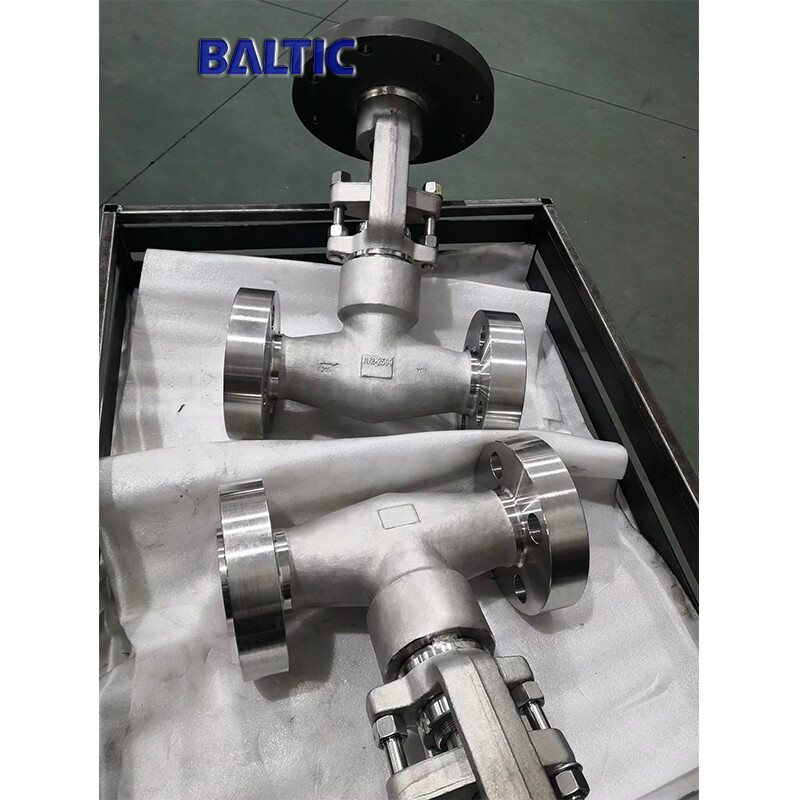

Class 2500 LB Globe Valve, API 602, 1/2 Inch, ASTM A182 F316
Key Specifications / Features
Model No.: Hits: 18
Discover our top-quality Class 2500 LB Globe Valve, designed for precision performance in industrial settings. This 1/2 Inch valve, crafted from ASTM A182 F316 steel, boasts a robust Pressure Seal Bonnet and API 602 compliance. Featuring DN15 size and PN420 rating, it ensures reliable operation under high pressure. Equipped with a convenient Top ISO Flange and RF End, this valve offers seamless integration and exceptional durability for your critical applications.
Request a quote
Share
Tags:
Detail Information
Valve description:
Name: High-pressure globe valve, pressure seal bonnet, with top ISO flange.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 1/2 Inch.
Nominal class: 2500 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: High-pressure globe valve, pressure seal bonnet, with top ISO flange.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 1/2 Inch.
Nominal class: 2500 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Small-size globe valve |
| Nominal diameter | 1/4 - 4 Inch |
| Design temp. | -196℃ - 573℃ |
| Design pressure | Class 150 - 4500 LB |
| Material | Forged carbon steel, Stainless steel, Alloy steel, Bronze |
| Design standard | API 602, BS 5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, Flange |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, chemical engineering |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | plug disc, needle disc |
| Function 3 | full bore, reduced bore |
| Function 4 | Integral flanged ends、welded on flanged ends |
