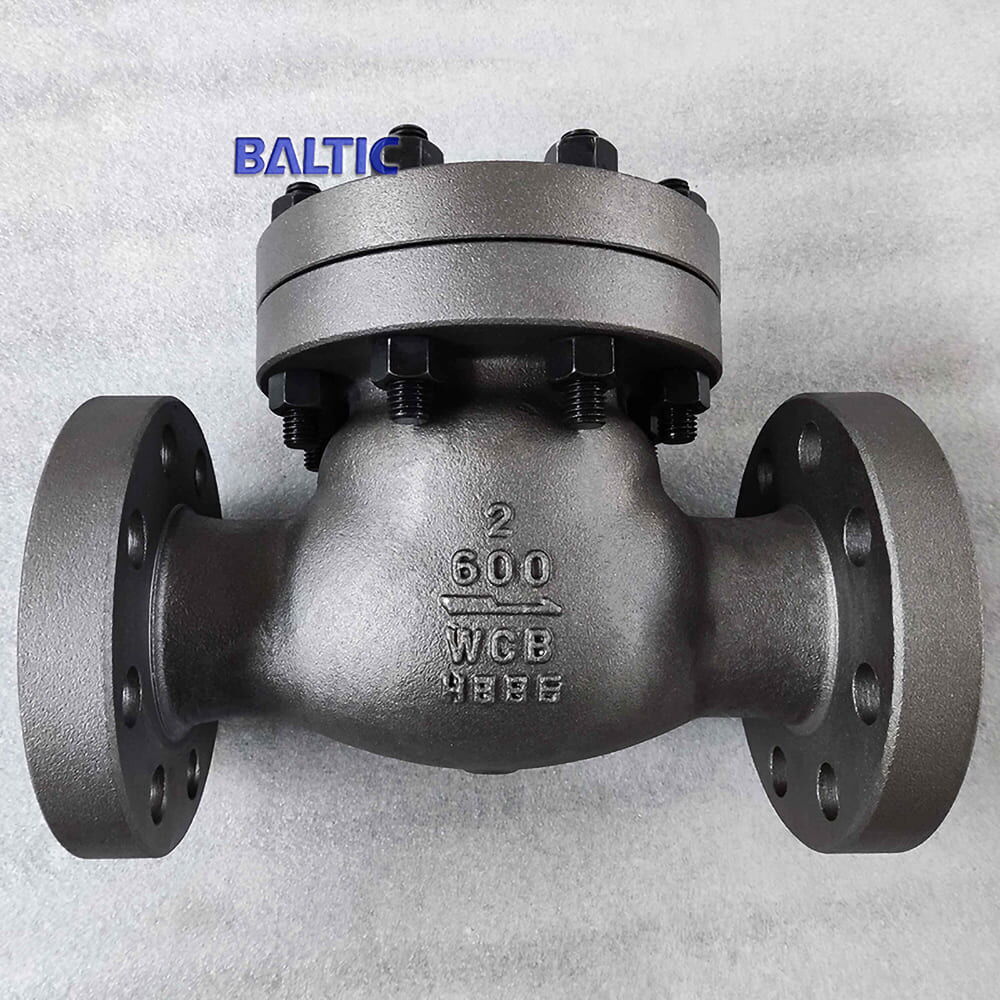

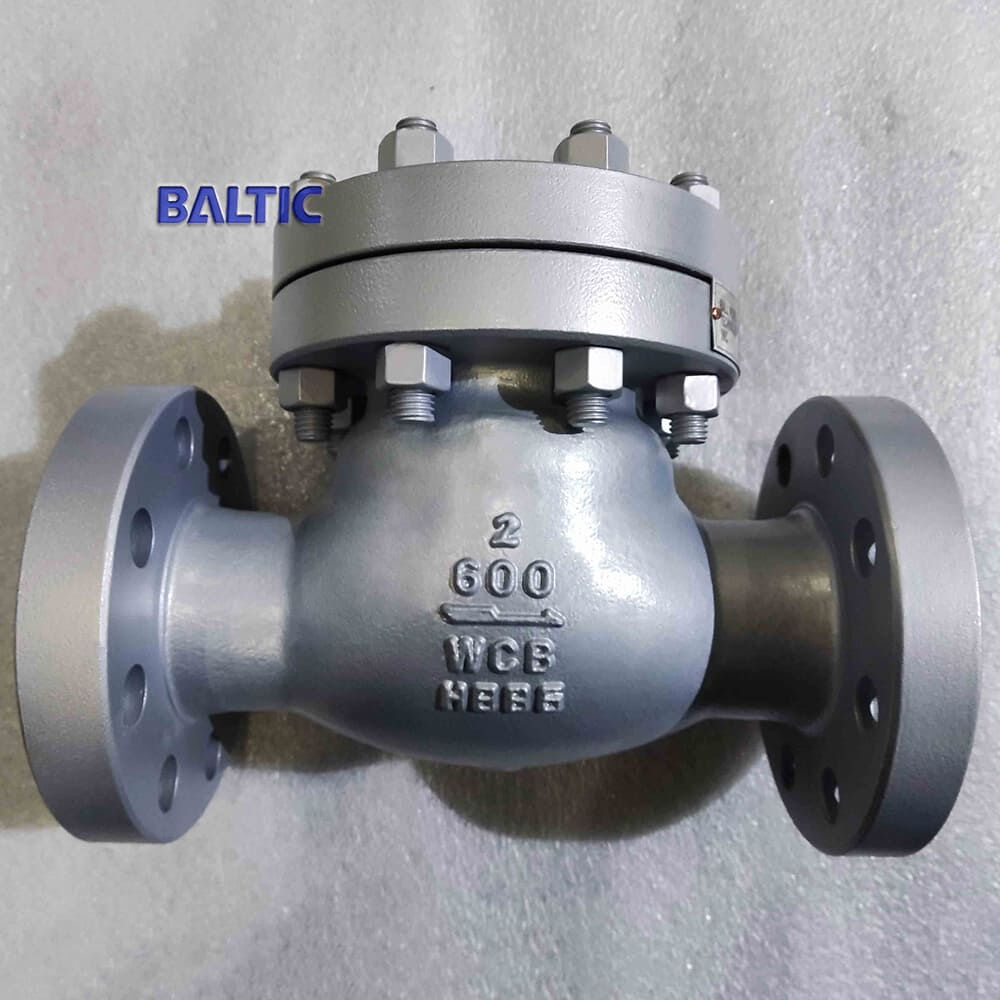

Carbon Steel Swing Check Valves, BS 1868, WCB, 2 IN, 600 LB

As a leading swing check valve manufacturer in China, we offer high-quality valves designed to BS 1868 standards. Our swing check valves are crafted from durable carbon steel ASTM A216 WCB, ensuring reliability and performance. Available in a 2-inch size (DN50) and rated for Class 600 LB (PN100), these valves feature RF flanged ends for secure and leak-proof connections. Designed for various applications, including industrial and chemical processes, our swing check valves provide exceptional durability and flow control precision, meeting the highest industry standards for performance and safety.

Tags:

• Carbon Steel Check Valve
• BS 1868 Check Valve
• ASTM A216 WCB Check Valve
• 2 Inch Check Valve
• Class 600 LB Check Valve

Valve Description

Name: Swing Type Check Valve
Design: BS 1868 – Standard Bore
Body Material: ASTM A216 WCB
Nominal Size: 2 Inch, DN50
Nominal Class: Class 600 LB, PN100
Connection Ends: RF Flanged Ends
Face-to-Face Dimension: As per ASME B16.10
Test and Inspection Standard: API 598

Other Features:

Bolted Cover Design
API 6D – Full Bore, BS 1868 – Standard Bore Options
Available with Inside Shaft or Outside Shaft Configurations

Outside Shaft Options:
Can be equipped with a lever and counterweight
Large sizes can be fitted with a hydraulic damping cylinder

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve

Size Range: NPS 2 Inch - 24 Inch (DN50 - DN600)

Design Pressure: Class 150 - 2500 LB (PN10 - PN420)

Design Standards: BS 1868, API 6D, DIN 3352

Design Temperature Range: -196°C to 593°C

Material Options:

Carbon Steel: ASTM A216 WCB, ASTM A216 WCC
Low Alloy Steel: ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A
Low-Temperature Carbon Steel: ASTM A352 LCB, ASTM A352 LCC
Stainless Steel: ASTM A351 CF8, CF8M, CF3M, CF8C
Special Alloys: CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
Aluminum Bronze: ASTM B148 C95800, ASTM B148 C95500

Connection Ends:

ASME B16.5 (Flanged Ends)
ASME B16.25 (Butt-Weld Ends)
EN 1092 Series

Applications:

Electric Power Generation
Petroleum Refining
Petrochemical Engineering
Offshore Oil Exploration
Chemical Processing
