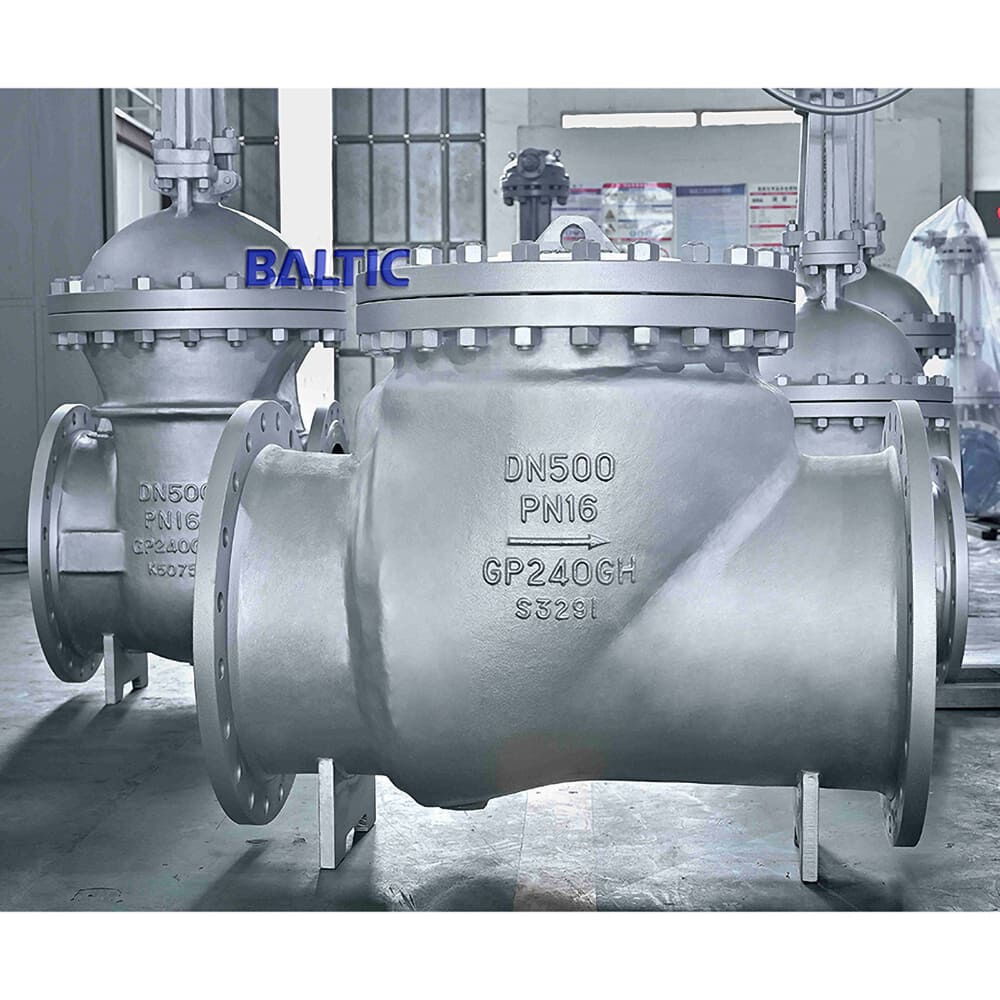

BS EN 10213 GP240GH Check Valve, BS 1868, DN500, PN16, RF

We are a leading fabricator of BS 1868 Swing Check Valves in China, featuring a durable BS EN 10213 GP240GH body. This valve is designed with a nominal size of DN500 and a pressure rating of PN16. It is equipped with RF flanged ends for secure connections and meets face-to-face dimensions as per EN558-1/line 48 (DIN 3202 F6). Engineered for reliability and performance, our valves are ideal for a variety of industrial applications requiring effective fluid control and efficient operation.

Tags:

• BS EN 10213 GP240GH Check Valve
• BS 1868 Check Valve
• DN500 Check Valve
• PN16 Check Valve

Swing Check Valve, BS EN 10213 GP240GH, DN500, PN16, RF.

Valve Description:

Product: BS 1868 GP240GH Swing Check Valve
Design Standard: BS 1868
Body Material: BS EN 10213 GP240GH
Nominal Size: DN500
Nominal Class: PN16
Connection Ends: RF Flanged Ends
Face to Face: As per EN 558-1/Line 48 (DIN 3202 F6)
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Available with Inside or Outside Shaft configurations

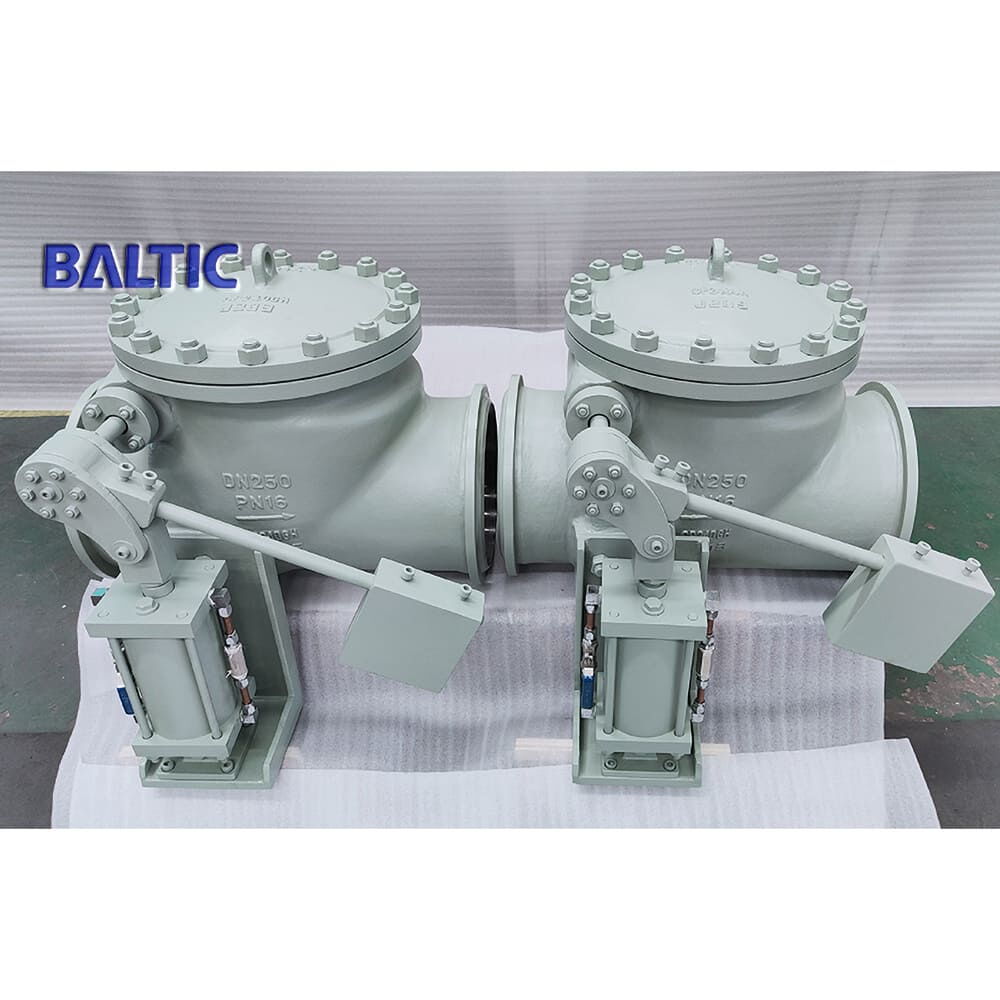

Outside Shaft: Can be fitted with lever + counterweight
Large-sized check valves can be equipped with hydraulic damping cylinders

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 Inch - 24 Inch, DN50 - DN600
Design Pressure: Class 150 LB - 2500 LB, PN10 - PN420
Design Standards: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Material Options:
ASTM A216 WCB, ASTM A216 WCC
ASTM A217 WC6, ASTM A217 WC9
ASTM A217 C5, ASTM A217 C12A
ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M
ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
