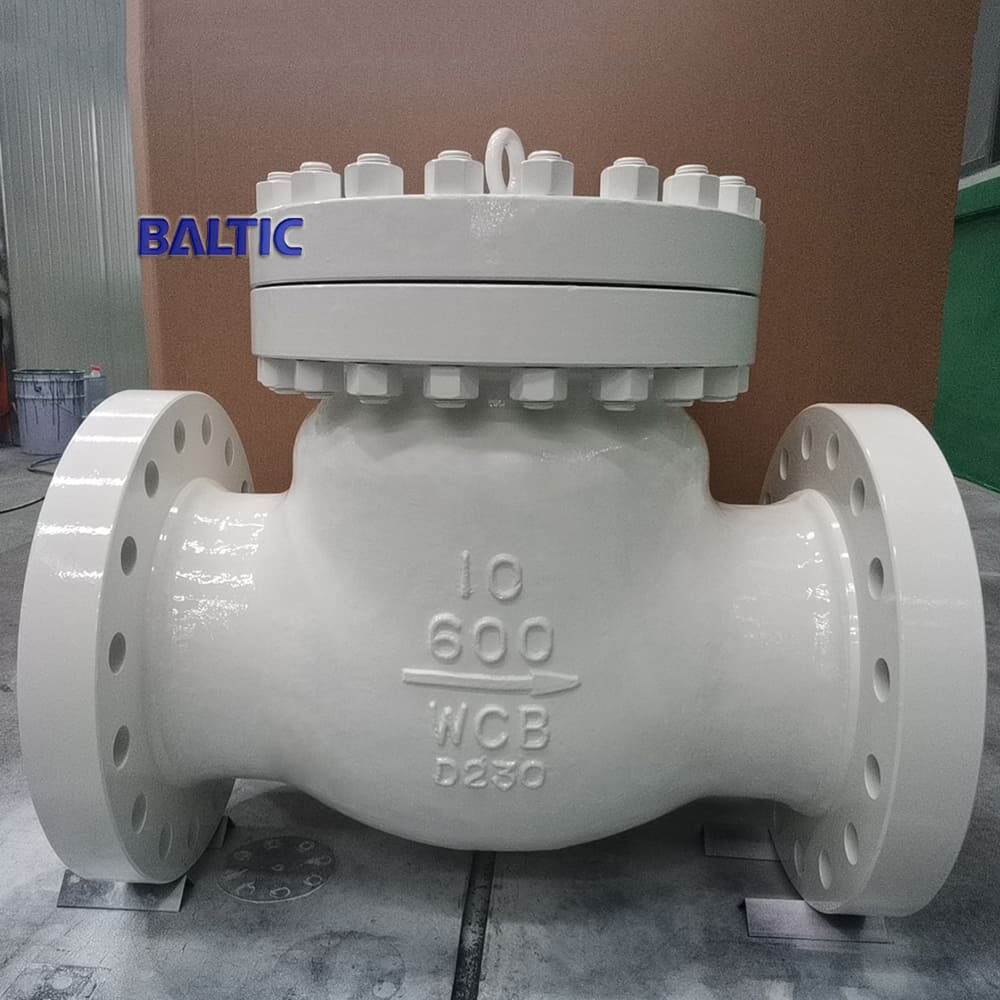

BS 1868 Swing Check Valve, ASTM A216 WCB, 10 IN, CL 600 LB

As a leading swing check valve supplier in China, we provide high-quality valves designed to BS 1868 standards. Our 10-inch swing check valves feature a durable ASTM A216 WCB body, Class 600 LB pressure rating, and PN100. The valves are equipped with RF flanged ends and are designed with face-to-face dimensions as per ASME B16.10. With precision engineering and robust materials, these valves ensure reliable performance and are ideal for various industrial applications, meeting the highest industry standards for durability and efficiency.

Tags:

• BS 1868 Check Valve
• ASTM A216 WCB Check Valve
• 10 Inch Check Valve
• Class 600 LB Check Valve

Valve Description:

Name: Swing Type Check Valve
Design: BS 1868 – Standard Bore
Body: ASTM A216 WCB
Nominal Size: 10 Inch, DN250
Nominal Class: Class 600 LB, PN100
Connection Ends: RF Flanged Ends
Face to Face: As per ASME B16.10
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Shaft options: Inside or Outside
Outside Shaft: Can be mounted with lever + counterweight
Large-size check valves may feature hydraulic damping cylinders

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 - 24 Inch, DN50 - DN600
Design Pressure: Class 150 LB - 2500 LB, PN10 - PN420
Design Standard: BS 1868, API 6D, DIN 3352
Design Temp.: -196°C to 593°C

Materials:
ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M
ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
