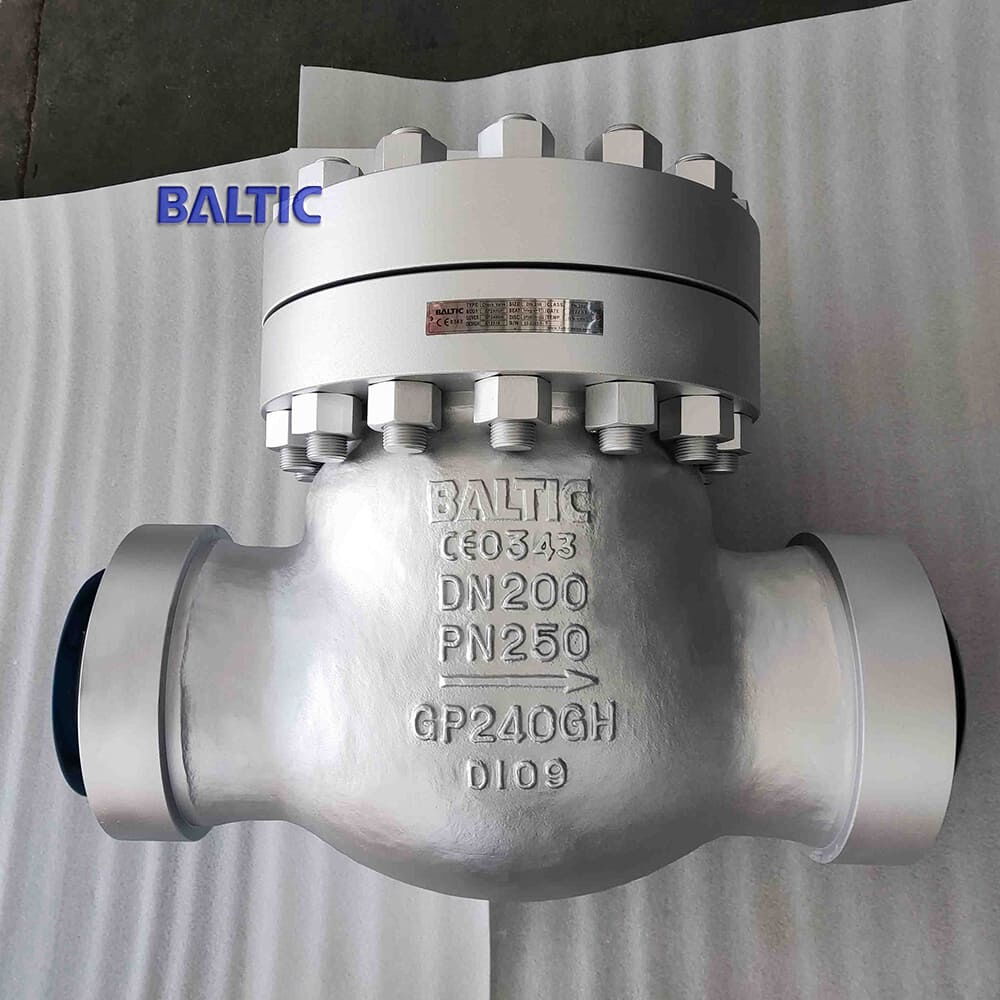

BS 1868 GP240GH Swing Check Valve, DN200, PN250, BW

As a leading swing check valve factory in China, we offer high-quality valves featuring a BS 1868 design and a BS EN 10213 GP240GH body. Our valves are available in DN200 size, PN250 pressure rating, and Butt Weld (BW) ends for secure connections. With a size range from NPS 2 Inch to 24 Inch, these valves are ideal for various industrial applications. Trust us for durable, reliable swing check valves designed to meet the highest industry standards for performance and efficiency.

Tags:

• BS 1868 Check Valve
• BS EN 10213 GP240GH Check Valve
• DN200 Check Valve
• PN250 Check Valve

BS 1868 Check Valve, BS EN 10213 GP240GH, DN200, PN250.

Valve Description:

Product: BS 1868 GP240GH Swing Check Valve, High Pressure
Design: API 6D – Full Bore
Body: BS EN 10213 GP240GH
Nominal Size: DN200
Nominal Class: PN250
Connection Ends: BW (Butt Weld) Ends
Face to Face: As per EN 558-1/Line 48 (DIN 3202 F6)
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Available with inside or outside shaft
Outside Shaft: Can be mounted with lever + counterweight
Large-sized check valves can be equipped with hydraulic damping cylinders

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 - 24 Inch, DN50 - DN600
Design Pressure: Class 150 - 2500 LB, PN10 - PN420
Design Standards: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Materials:
ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN)
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN 1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
