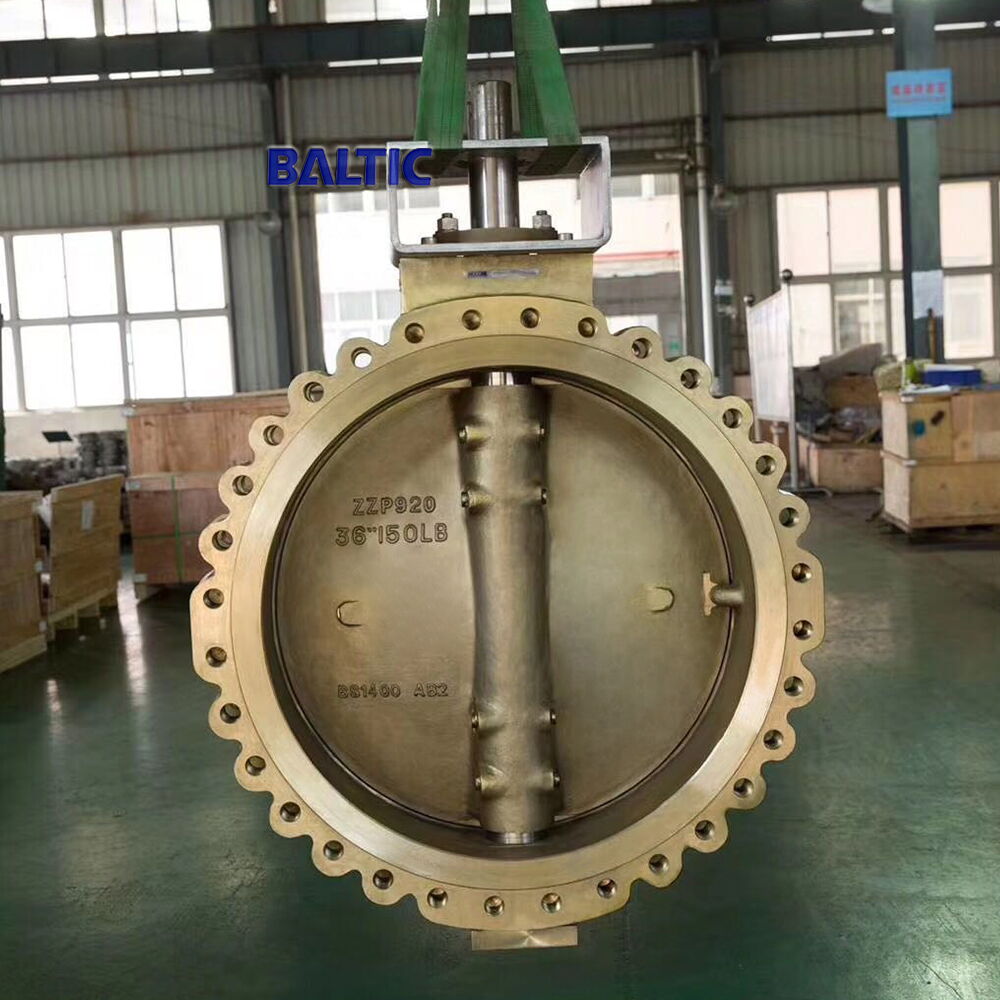

BS 1400 LUG Butterfly Valve, API 609, 36 Inch, 150 LB

The BS 1400 Butterfly Valve features a 36-inch (DN900) LUG Type design with a bracket and ISO 5211 top flange, compliant with API 609. Rated at 150 LB (PN20), this valve includes a durable MONEL K500 stem and RPTFE seat for enhanced corrosion resistance and reliability in demanding applications.

Tags:

• API 609 Butterfly Valve
• 36 Inch Butterfly Valve
• Class 150 LB Butterfly Valve

Name: LUG type Butterfly Valve with Bracket + ISO top flange 5211
Design: API 609.
Body: BS 1400
Disc: BS 1400
Stem: MONEL K500
Seat: RPTFE
Nominal size: 36 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
