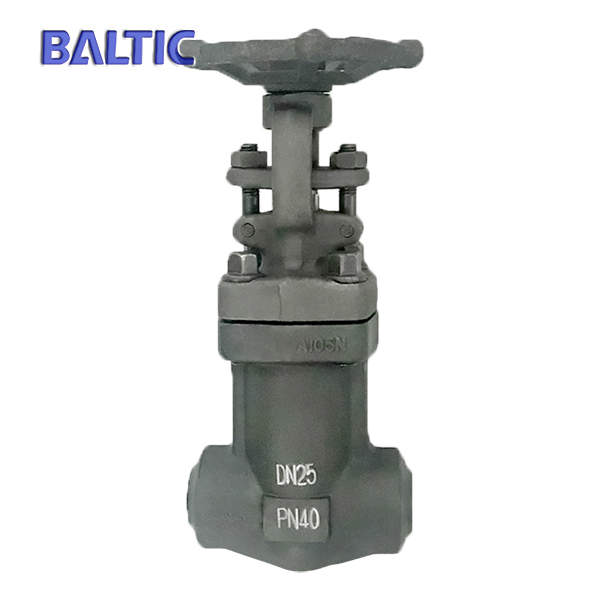

Bellows Seal Globe Valve, ASTM A105N, DN25, PN40, BW Ends, API 602

Key Specifications / Features

Model No.: Hits: 211

Bellows Seal Globe Valve Supplier in China: Forged Steel Bellows Seal Globe Valve, A105N, DN25, PN40, BW Ends, API 602, Test & Inspection: EN12266-1.

Request a quote Share

Tags:

Next: Butt Weld Bellows Seal Globe Valve, ASTM A105N, DN32, PN40, API 602

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Name: Bellows seal globe valve.
Design: API 602.
Body: ASTM A105N.
Nominal size: DN25.
Nominal class: PN40.
End connection: BW.
Face to face: as per manufacture standard..
Test and inspection: EN12266-1.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends
