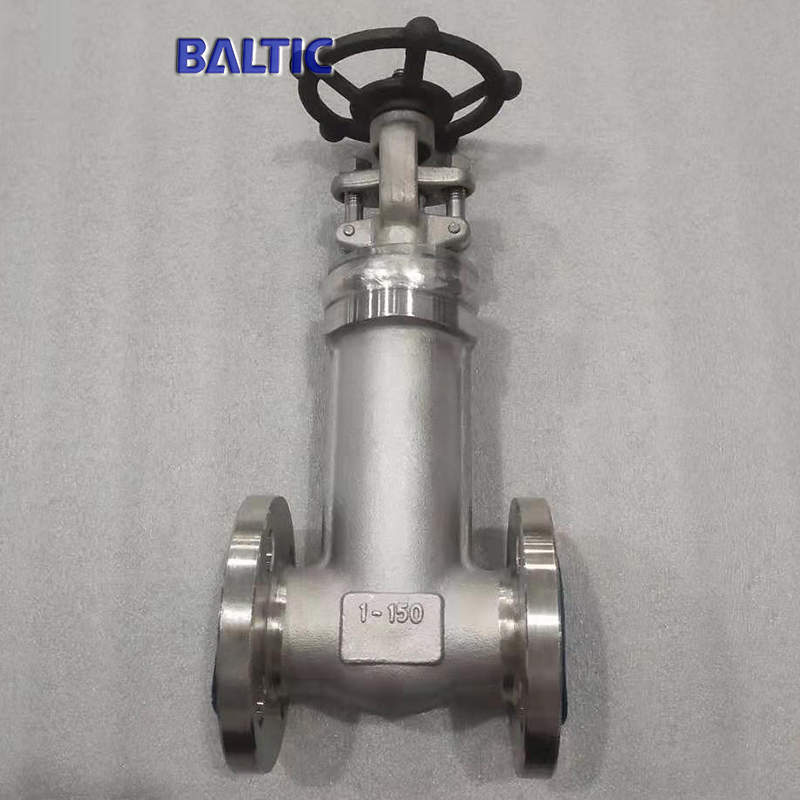

Bellow Sealed Gate Valve, ASTM A182 F316, 1 Inch, 150 LB

Key Specifications / Features

Model No.: Hits: 34

Bellow Sealed Gate Valve Factory: API 602 Bellows Seal Gate Valves, ASTM A182 F316, 1 Inch, Class 150 LB, Flange Ends, Welded Bonnet, FF ASME B16.10.

Request a quote Share

Tags:

Next: ASTM B150 C63000 Gate Valve, API 602, 3/4 IN, CL800, NPT

Previous: ASTM B148 C95800 Gate Valve, 1.5 Inch, Class 300, API 602, RF

Detail Information

Valve Description
Name: Small Size Gate Valve, Welded Bonnet, with Bellows Seal
Design: API 602
Body: ASTM A182 F316
Nominal Size: 1 Inch
Nominal Class: Class 150 LB
End Connection: Flange Ends
Face to Face: ASME B16.10
Test and Inspection: API 598

Technical Parameters and Characteristics
Product: Small Size Gate Valve
Nominal Diameter: 1/4 Inch - 4 Inch
Design Temp.: -196℃ - 573℃
Design Pressure: Class 150 LB - Class 4500 LB
Material: Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard: API 602, BS 5352
Face to Face: Manufacture Standard, ASME B16.10
Connection End: NPT, SW, BW, Flanged
Test Standard: API 598, ISO 5208
Operation: Handwheel, Electric
Application: Power Station, Petroleum, Chemical Engineering
Function 1: Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2: Solid Wedge
Function 3: Full Bore, Reduced Bore
Function 4: Integral Flanged Ends, Welded on Flanged Ends
