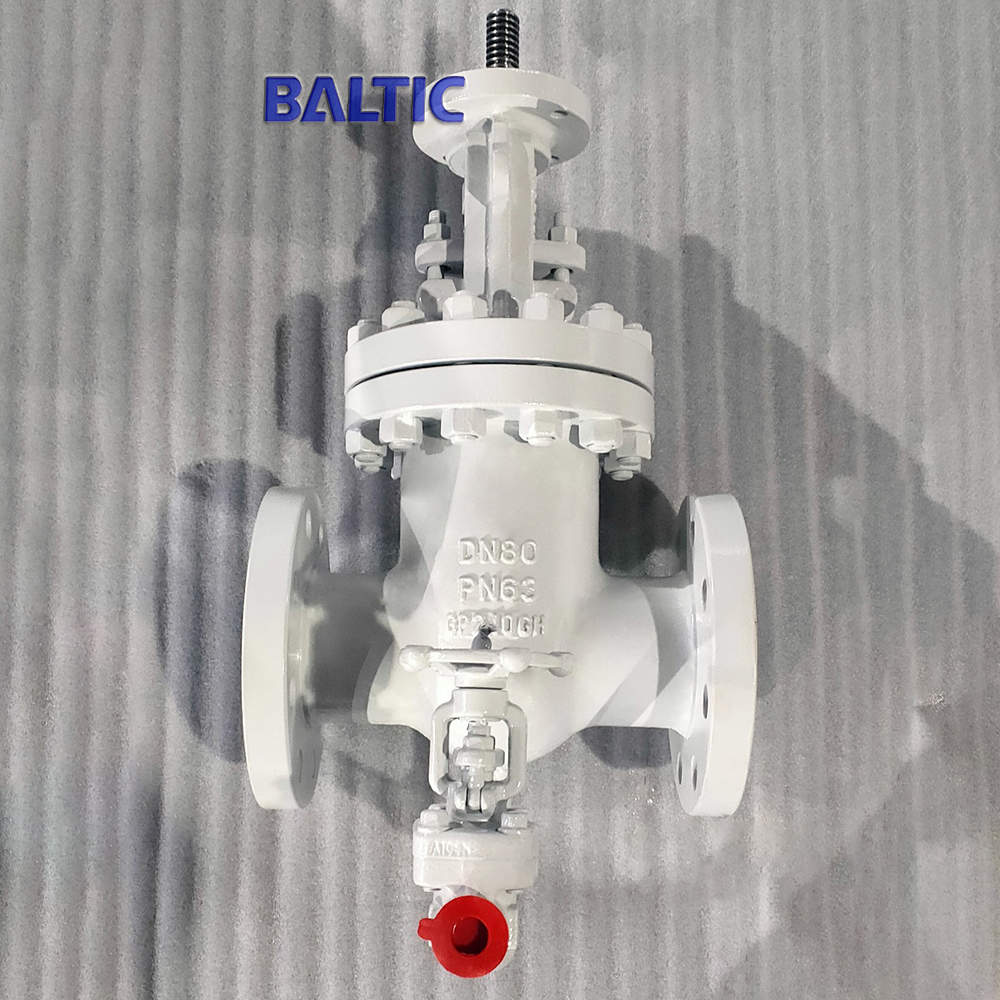

Bare Stem Gate Valve with ISO Top Flange, DN80, PN63

Key Specifications / Features

Model No.: Hits: 18

Bare Stem Gate Valve Fabricator: Bare Stem Gate Valves with ISO Top Flange 5210 F10, DN80, PN63, GP240GH, 1.0619, EN 1984, EN 1092-1/B2 Ends.

Request a quote Share

Tags:

Next: DN200 PN63 Gate Valve with Drain Valve, GP240GH, EN 1984

Previous: API 600 flexible Wedge Gate Valve, A216 WCB Body, 30 Inch, 300 LB

Detail Information

Valve Description
Product Name: Special Design Gate Valve with Drain Valve
Design: EN 1984
Material: GP240GH (1.0619)
Nominal Size: DN80
Nominal Pressure: PN63
Connection Ends: EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Bare stem with ISO top flange 5210 F10
Test and Inspection: EN 12266-1

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: Class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500.
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Operation: Handwheel, gearbox, electric.
Application: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering.
