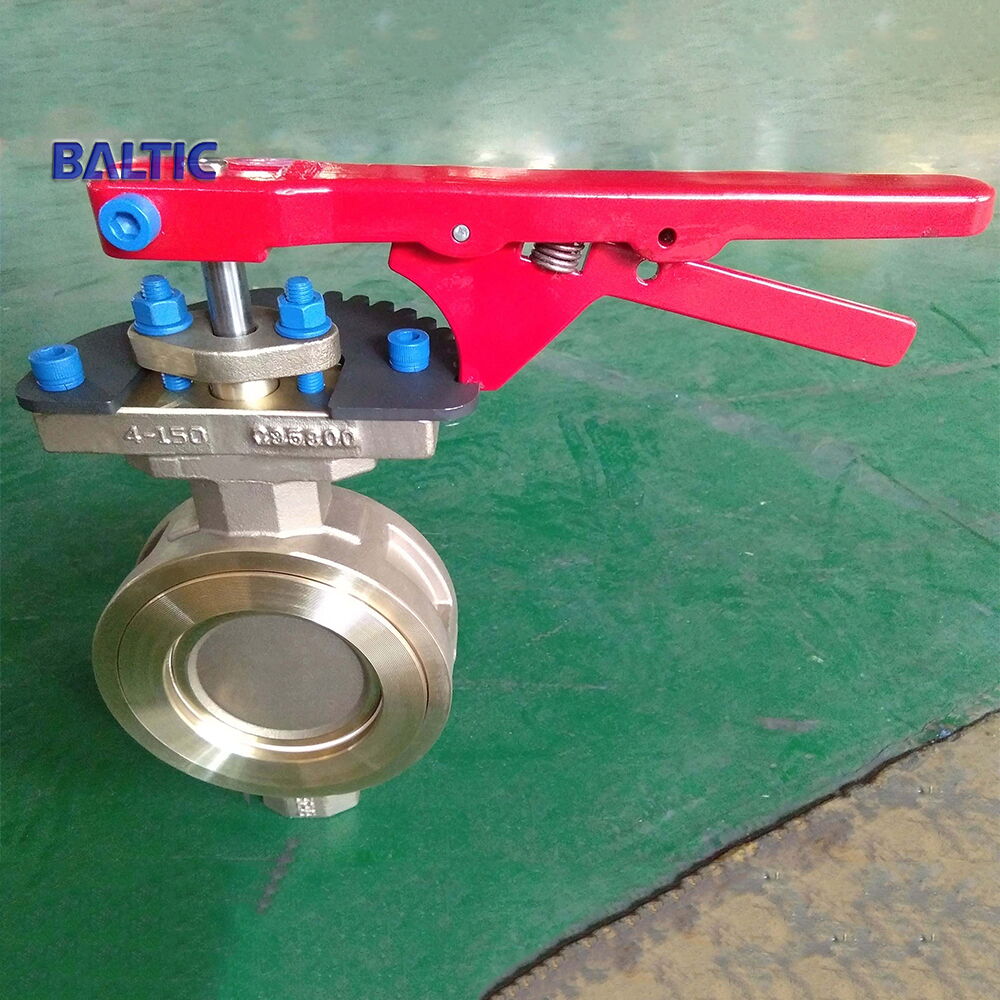

ASTM B148 C95800 Wafer Butterfly Valve, API 609, 4IN, 150 LB

High-quality ASTM B148 C95800 wafer butterfly valve manufacturer, compliant with API 609 standards. This 4-inch, 150 LB double offset valve features a durable MONEL K500 stem, RPTFE seat, and a C95800 body & disc, ideal for industrial applications.

Tags:

• Wafer Butterfly Valve
• API 609 Butterfly Valve
• 4 Inch Butterfly Valve
• Class 150 LB Butterfly Valve
• ASTM B148 C95800 Butterfly Valve

Name: Wafer type Butterfly Valve.
Design: API 609.
Body: ASTM B148 C95800.
Disc: ASTM B148 C95800.
Stem: MONEL K500
Seat: RPTFE
Nominal size: 4 Inch.
Nominal class: 150 LB.
Connection ends: WAFER type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi-Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL K500
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
