ASTM B148 C95800 Gearbox Ball Valve, 8 Inch, 300 LB, API 6D

ASTM B148 C95800 Gearbox Ball Valve Factory: Aluminum Bronze Ball Valves with Gearbox, ASTM B148 C95800, API 6D, DN200, 8 Inch, PN40, 300 LB, FF flange.

Tags:

• ASTM B148 C95800 Ball Valves
• Gearbox Operated Ball Valve
• 8 Inch Ball Valve
• DN200 Ball Valve
• PN40 Ball Valve
• Class 300 LB Ball Valve
• API 6D Ball Valve
• FF Ball Valve
• Aluminum Bronze Ball Valves

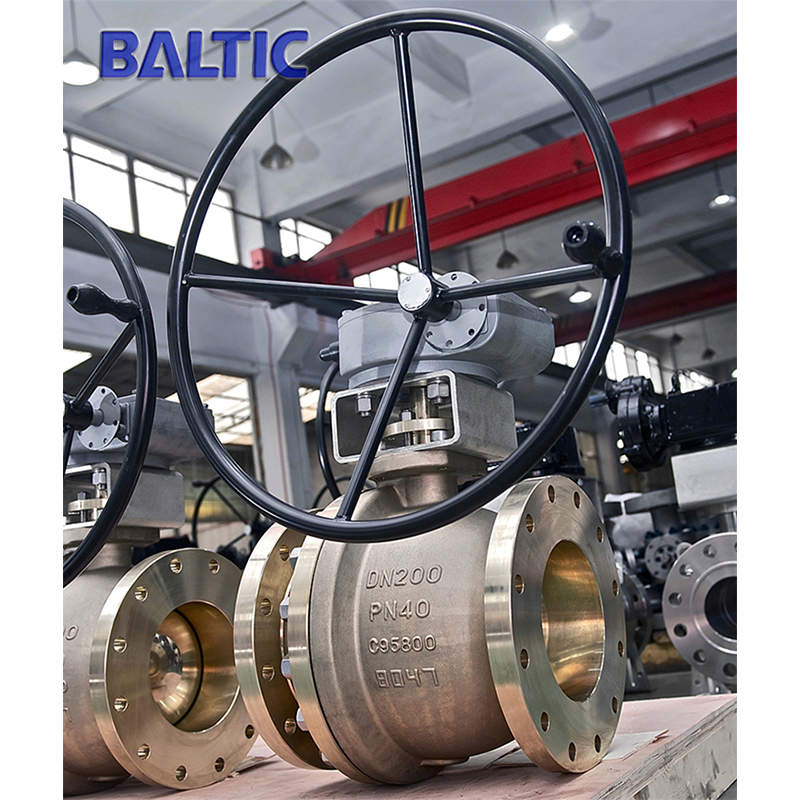

Aluminum bronze Ball valve with gearbox operation

Design: API 6D.
Body: ASTM B148 C95800.
Nominal size: DN200, 8 Inch.
Nominal class: PN40.
End Connection: FF flange (flat face) as per EN1092-1, type A.
Face to face: EN558-1.
Test and inspection: EN12266-1.

Product Range:
Sizes: 1/2 Inch - 60 Inch (DN15 - DN1500).
Design Pressure: Class 150 - 900 LB, PN10 - PN160.
Design Standards: EEMUA 182, ASME B16.34, API 608, API 6D.
Design Temp.: -29℃ - 260℃.
Body materials: ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200.
End connections: NPT, Flange.
Operation: Hand lever, gearbox, pneumatic.
Applications: for seawater, offshore and marine.
