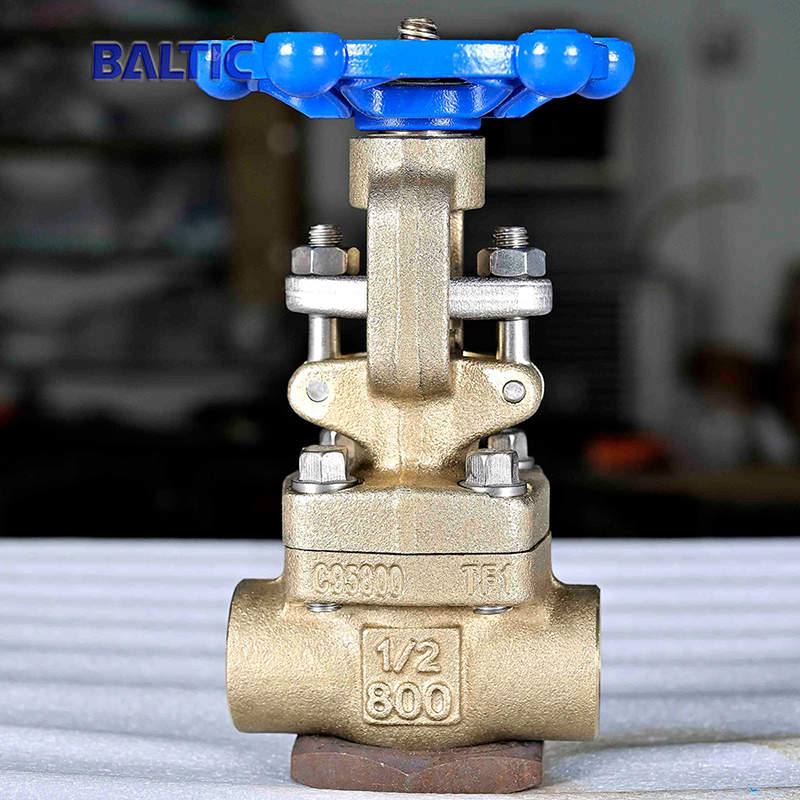

ASTM B148 C95800 Gate Valve, 1/2 Inch, 800 LB, API 602, NPT

Key Specifications / Features

Model No.: Hits: 29

ASTM B148 C95800 Gate Valve Fabricator: ASTM B148 C95800 Aluminum Bronze Gate Valves, 1/2 Inch, DN15, PN130, Class 800 LB, API 602, NPT Ends, API 598.

Request a quote Share

Tags:

Next: 3/4 Inch 800 LB Gate Valve, ASTM B148 C95800, API 602, NPT

Previous: ASTM B148 C95800 Gate Valve, 1.5 Inch, Class 300, API 602, RF

Detail Information

Name: Small size gate valve, aluminum bronze gate valve.
Design: API 602.
Material: ASTM B148 C95800.
Nominal size: 1/2 Inch.
Nominal class: 800 LB.
Connection ends: NPT.
Face to face: manufacture standard = 79mm.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve
Nominal diameter	1/4" - 4"
Design temp.	-29℃ - 260℃
Design pressure	Class 150 - 900, PN10 - PN160.
Material	ASTM B148 C95400, C95500, C95800 ASTM B150 C63000, C63200.
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	for sea water, offshore and marine.
Function 1	Bolted bonnet
Function 2	solid wedge
Function 3	Full bore, reduce bore
Function 4	Integral flanged ends, F-NPT ends
