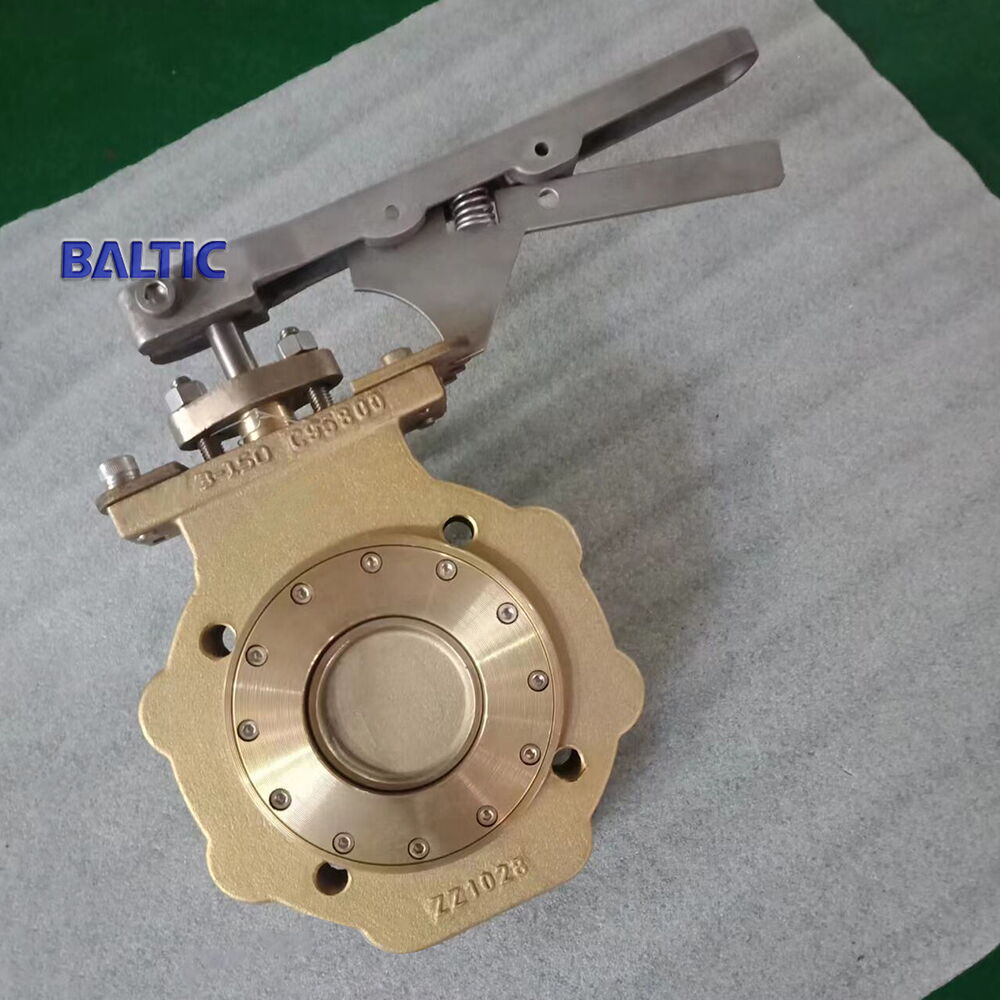

• ASTM B148 C95800 Butterfly Valve, 3 Inch, 150 LB, API 609

ASTM B148 C95800 Butterfly Valve, 3 Inch, 150 LB, API 609

ASTM B148 C95800 Butterfly Valve, 3 Inch, 150 LB, API 609

Key Specifications / Features

Model No.: Hits: 5

Discover high-quality ASTM B148 C95800 butterfly valves compliant with API 609 standards, featuring a 3-inch size, 150 LB rating, DN80, PN20 pressure rating, and lug end connection. Designed with a durable ASTM B148 C95800 disc, MONEL K500 stem, and RPTFE seat for reliable performance in demanding applications.
Request a quote Share

Detail Information

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM B148 C95800.
Disc: ASTM B148 C95800.
Stem: MONEL K500
Seat: RPTFE
Nominal size: 3 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL K500
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
