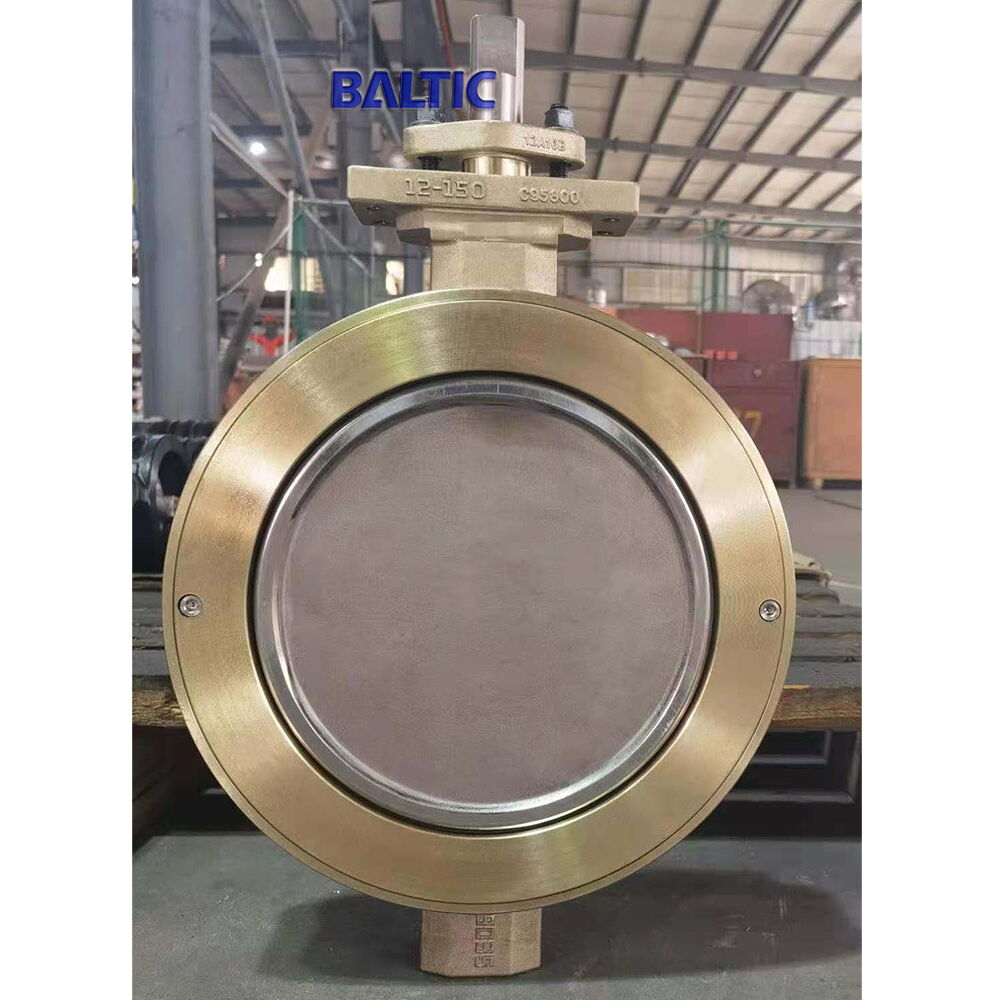

ASTM B148 C95800 Butterfly Valve, 12 Inch, 150 LB, API 609

Find top-quality ASTM B148 C95800 butterfly valves from a trusted Chinese supplier. Our 12-inch, 150-lb, API 609-compliant wafer-type valves feature soft, replaceable seats and bi-directional sealing for reliable performance in various industrial applications.

Tags:

• 12 Inch Butterfly Valve
• Class 150 LB Butterfly Valve
• API 609 Butterfly Valve

Name: Wafer type Butterfly Valve.
Design: API 609.
Body: ASTM B148 C95800.
Nominal size: 12 Inch.
Nominal class: 150 LB.
Connection ends: WAFER type.
Face to face: API 609
Test and inspection: API 598.

High-Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL K500
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
