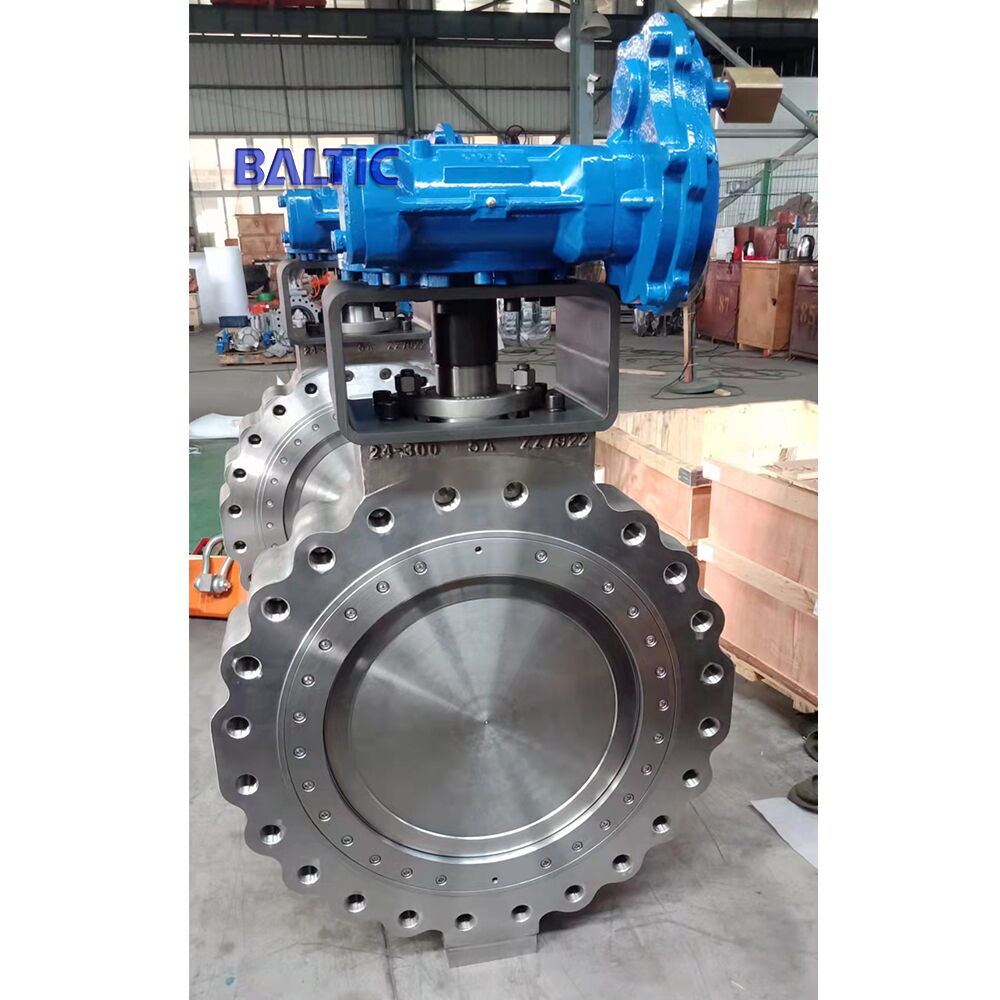

ASTM A995 5A Butterfly Valve, 24 Inch, CL 300 LB, API 609

Discover premium ASTM A995 5A butterfly valves: 24-inch, 300 LB (DN600, PN50), API 609-compliant with A995 5A disc, ASTM A182 F53 stem, RPTFE seat, and lugged type design. Perfect for high-performance industrial applications requiring robust materials and reliable operation.

Tags:

• 24 Inch Butterfly Valve
• Class 300 LB Butterfly Valve
• API 609 Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A995 5A.
Disc: ASTM A995 5A.
Stem: ASTM A182 F53
Seat: RPTFE
Nominal size: 24 Inch.
Nominal class: 300 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
