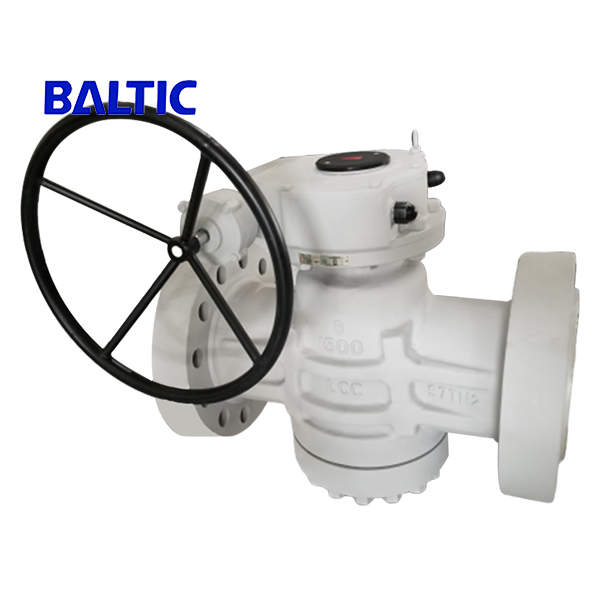

• ASTM A352 LCC Pressure Balanced Plug Valve, 8 Inch, 600 LB, API 6D

ASTM A352 LCC Pressure Balanced Plug Valve, 8 Inch, 600 LB, API 6D

ASTM A352 LCC Pressure Balanced Plug Valve, 8 Inch, 600 LB, API 6D

Key Specifications / Features

Model No.: Hits: 121

ASTM A352 LCC Pressure Balanced Plug Valv Exporter in China: Pressure Balance Plug Valve, 8 Inch CL 600 LB, ASTM A352 LCC, API 6D, RF Flange.
Request a quote Share

Detail Information

Pressure balance, lubricated, inverted, plug valve.
Design: API 6D.
Body: ASTM A352 LCC.
Nominal size: 8 Inch.
Nominal class: 600 LB.
End Connection: RF Flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
