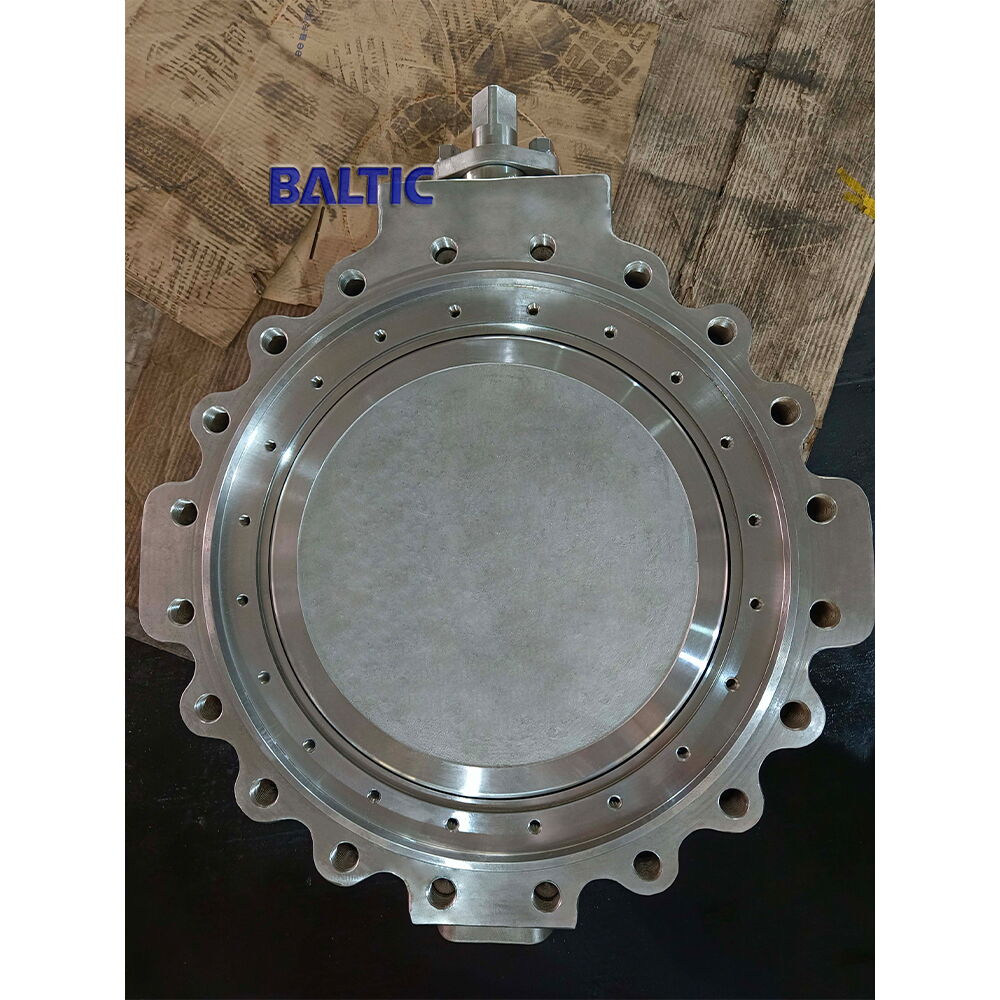

ASTM A351 CF8M Lugged Butterfly Valve, 18 Inch, 150 LB

Find high-quality ASTM A351 CF8M butterfly valves from a leading Chinese fabricator. Specifications include 18-inch (DN450), 150 LB (PN20), API 609 compliance, ASTM A182 F51 stem, ISO 5211 top flange, and a durable bracket. Perfect for industrial applications.

Tags:

• 18 Inch Butterfly Valve
• Class 150 LB Butterfly Valve
• API 609 Butterfly Valve

Name: LUG type Butterfly Valve with Bracket + ISO top flange 5211
Design: API 609.
Body: ASTM A351 CF8M.
Disc: ASTM A351 CF8M
Stem: ASTM A182 F51
Seat: RPTFE
Nominal size: 18 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
