Name:

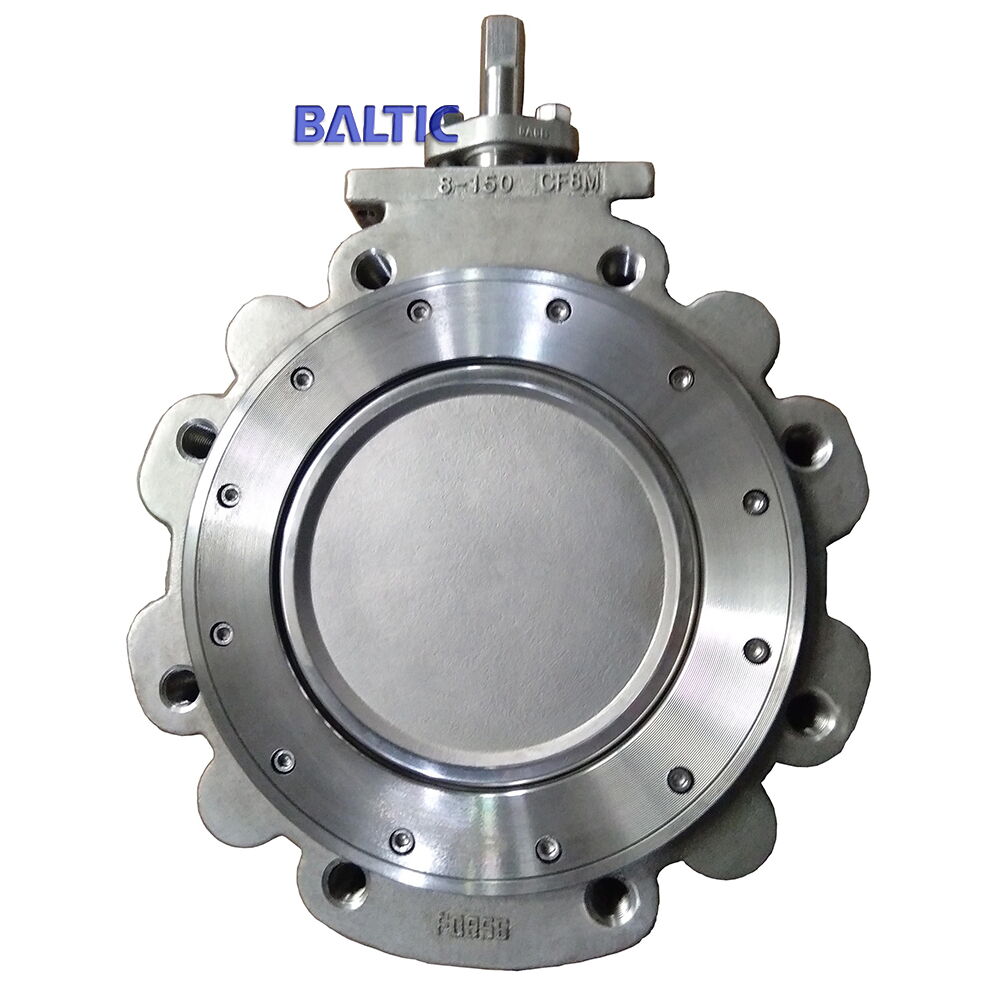

LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A351 CF8M.
Disc: ASTM A351 CF8M
Stem: ASTM A182 F51
Seat: RPTFE
Nominal size: 8 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.
High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional
Type: Lug, wafer, double flanges
Valve Face to Face: API 609
Testing & inspection: API 598 - tight A
Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW
Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
