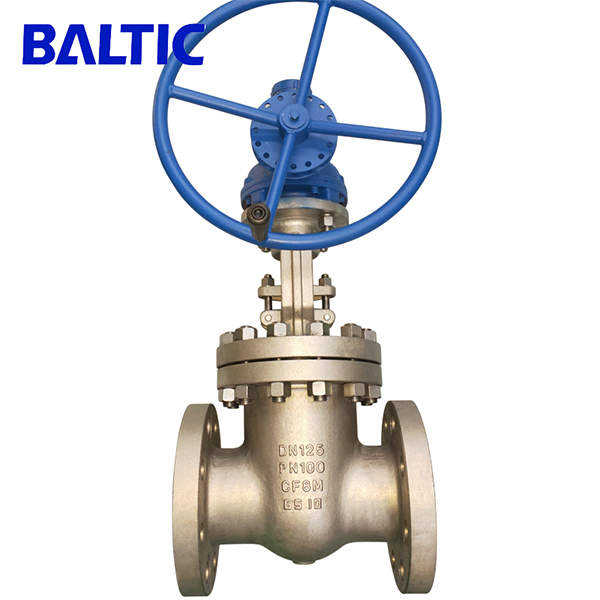

ASTM A351 CF8M Flexible Wedge Gate Valve, DN125, PN100, RF Flanged

Key Specifications / Features

Model No.: Hits: 61

ASTM A351 CF8M Wedge Gate Valve Manufacturer in China: ASTM A351 CF8M Flexible Wedge Gate Valve, EN 1984, DIN 3352, DN125, PN100, RF Flange, EN 1092-1/B2.

Request a quote Share

Tags:

Next: EN 1984 Wedge Gate Valve, A351 CF8M, DN65, PN40, RF, EN 1092-1/B1

Previous: API 600 flexible Wedge Gate Valve, A216 WCB Body, 30 Inch, 300 LB

Detail Information

Product name: Flexible wedge gate valve.
Design: EN 1984, DIN 3352.
Material: ASTM A351 CF8M.
Nominal size: DN125.
Nominal pressure: PN100.
Connection ends: RF flange, EN 1092-1/B2.
Face to face: EN 558-1/line 26 (DIN 3202 F7).
Test and inspection: EN 12266-1.

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
