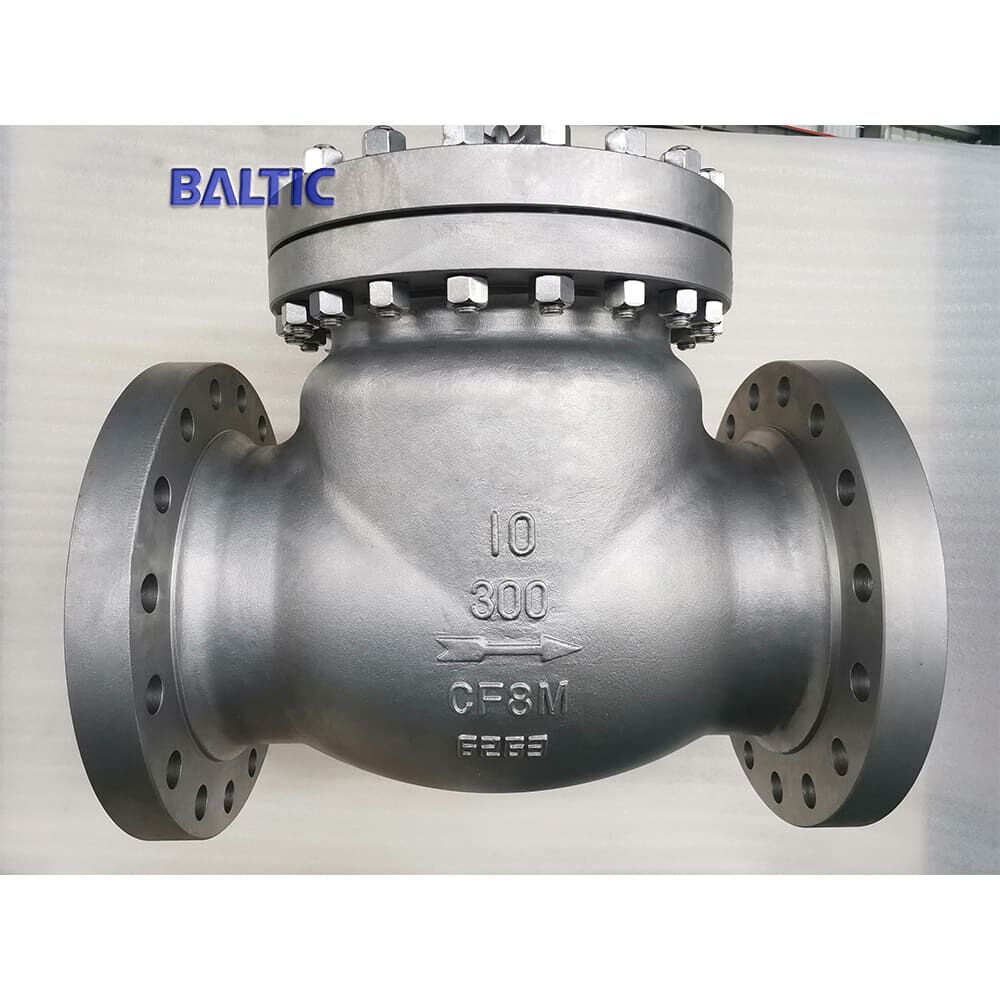

ASTM A351 CF8M Check Valves, BS 1868, CL 300 LB, 10 Inches

We are a leading Swing Check Valve manufacturer from China, offering high-quality valves made from stainless steel ASTM A351 CF8M. Designed to meet BS 1868 standards, this 10-inch valve features a Class 300 LB pressure rating, RF flanged ends, and a face-to-face dimension per ASME B16.10. Engineered for durability and reliable performance, it is ideal for use in various industrial applications where secure flow control and pressure management are essential. Trust our valves for optimal performance in your system's operation.

Tags:

• ASTM A351 CF8M Check Valve
• BS 1868 Check Valve
• Class 300 LB Check Valve
• 10 Inch Check Valve

Valve Description:

Name: Swing Type Check Valve
Design: BS 1868 – Standard Bore
Body Material: ASTM A351 CF8M
Nominal Size: 10 Inch, DN250
Nominal Class: Class 300
Connection Ends: RF Flanged Ends
Face-to-Face: As per ASME B16.10
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Available with inside or outside shaft configuration
Outside Shaft: Can be mounted with lever and counterweight
Large Sizes: Can be fitted with hydraulic damping cylinder

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 Inch - 24 Inch, DN50 - DN600
Design Pressure: Class 150 LB - 2500 LB, PN10 - PN420
Design Standard: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Materials:
ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A
ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M
ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
