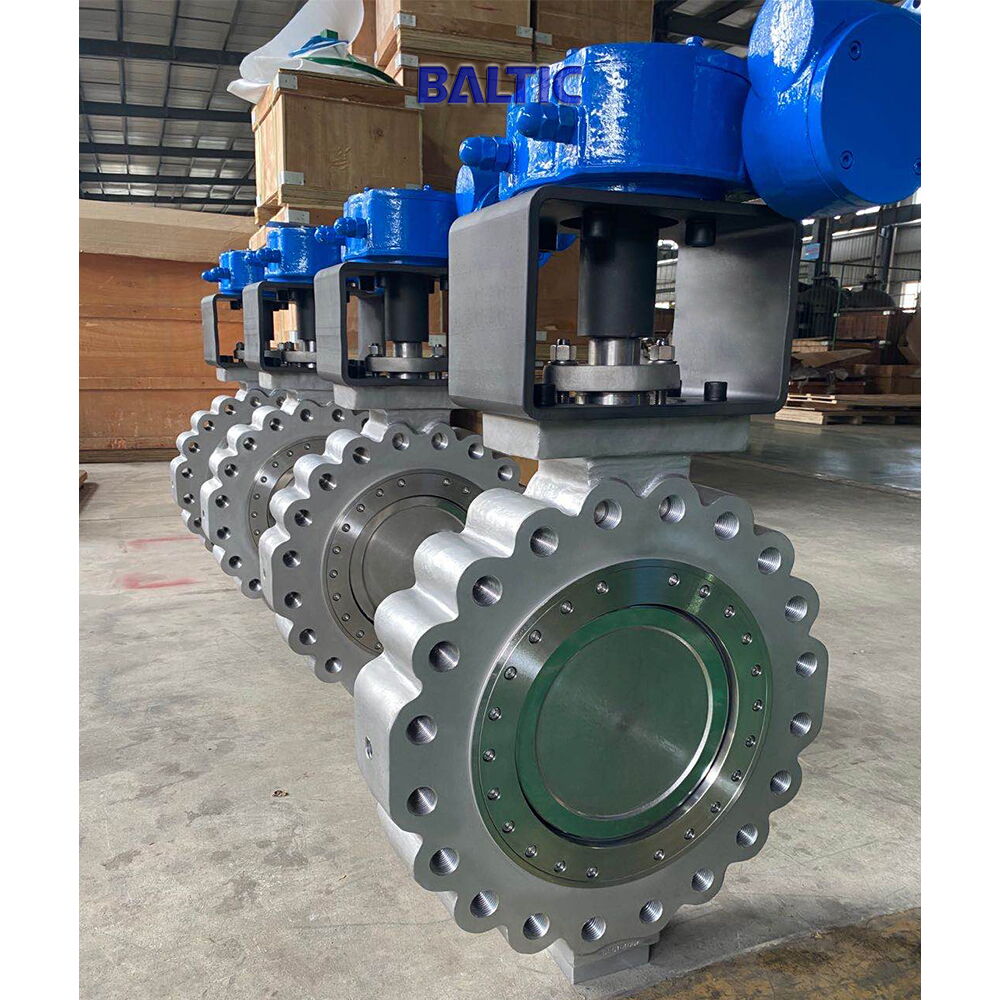

ASTM A351 CF8M Butterfly Valve, 18 Inch, 150 LB, API 609

Discover high-quality ASTM A351 CF8M butterfly valves from our reliable supplier in China, featuring API 609 certification. This 18-inch valve, designed for CL 150 LB applications, has a DN450 and PN20 rating. It includes a CF8M disc, ASTM A182 F51 stem, and an RPTFE seat with a convenient lug end design, ensuring durability and performance for various industrial applications.

Tags:

• 18 Inch Butterfly Valve
• Class 150 LB Butterfly Valve
• API 609 Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A351 CF8M.
Disc: ASTM A351 CF8M
Stem: ASTM A182 F51
Seat: RPTFE
Nominal size: 18 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.


High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator
to be done ANTI-ACID paint coating
