ASTM A351 CF8 T Type Strainer, ASME B16.34, 6 Inch, Class 150, RF

Key Specifications / Features

Model No.: 1-1 Hits: 227

China ASTM A351 CF8 T Type Strainer Manufacturer Baltic Offers ASTM A351 CF8 T Type Strainer, ASME B16.34, 6 Inch, Pressure Class 150, RF Flanged Ends.

Request a quote Share

Tags:

Next: ASTM A216 WCB T Type Strainer, 12IN, CL150, ASME B16.34, RF

Detail Information

Valve description:
Name: T type strainer.
Design: ASME B16.34.
Body: ASTM A351 CF8.
Nominal size: 6 Inch.
Nominal class: Class 150.
Connection ends: RF Flanged ends.
Face to face: manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics

Product	T type strainer
Nominal diameter	NPS 2”～24”	DN50～DN600
Design temp.	-196℃ ～ 593℃
Design pressure	class 150 ～ 300	PN 10 ～ PN40
Material	A216 WCB, WCC; A217 WC6, WC9, C5; A352 LCB, LCC; A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M; A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN); ASTM B 148 C95800, C95500
Design standard	ASME B16.34
Face to Face	ASME B16.10, manufacture standard
Connection end	RF, BW
Test standard	API 598
Operation	NO
Application	Petroleum, chemical, water supply and drainage, water treatment
Function 1	On-line repair + maintenance
Function 2	with a plug drain
Function 3	2-layer screen, strong enough, not damage
Function 4	bolted cover, bonnet gasket: SS + graphite (spiral wound)

ASTM A351 CF8 T Type Strainer, ASME B16.34, 6 Inch, Class 150, RF

Key Specifications / Features

Detail Information

Similar Products

ASTM A216 WCB Y Strainer, 4IN, CL150, RF Ends, ASME B16.34

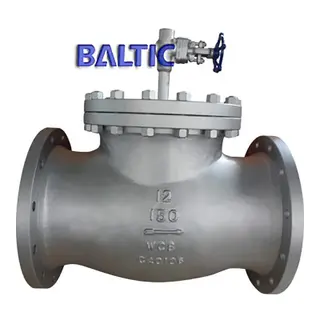

ASTM A216 WCB T Type Strainer, 12IN, CL150, ASME B16.34, RF

ASTM A352 LCC Y-Strainer, 12 Inch, Class 600, ASME B16.34, RF

WPB Basket Type Strainer, 2 Inch, Class 300, ASME B16.34, RF

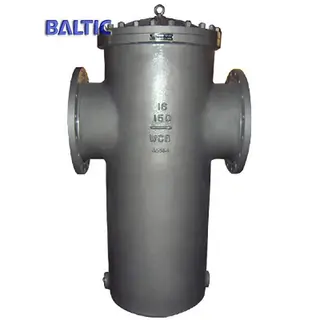

WCB Basket Strainer, ASME B16.34, 16 Inch, Class 150, RF Ends
