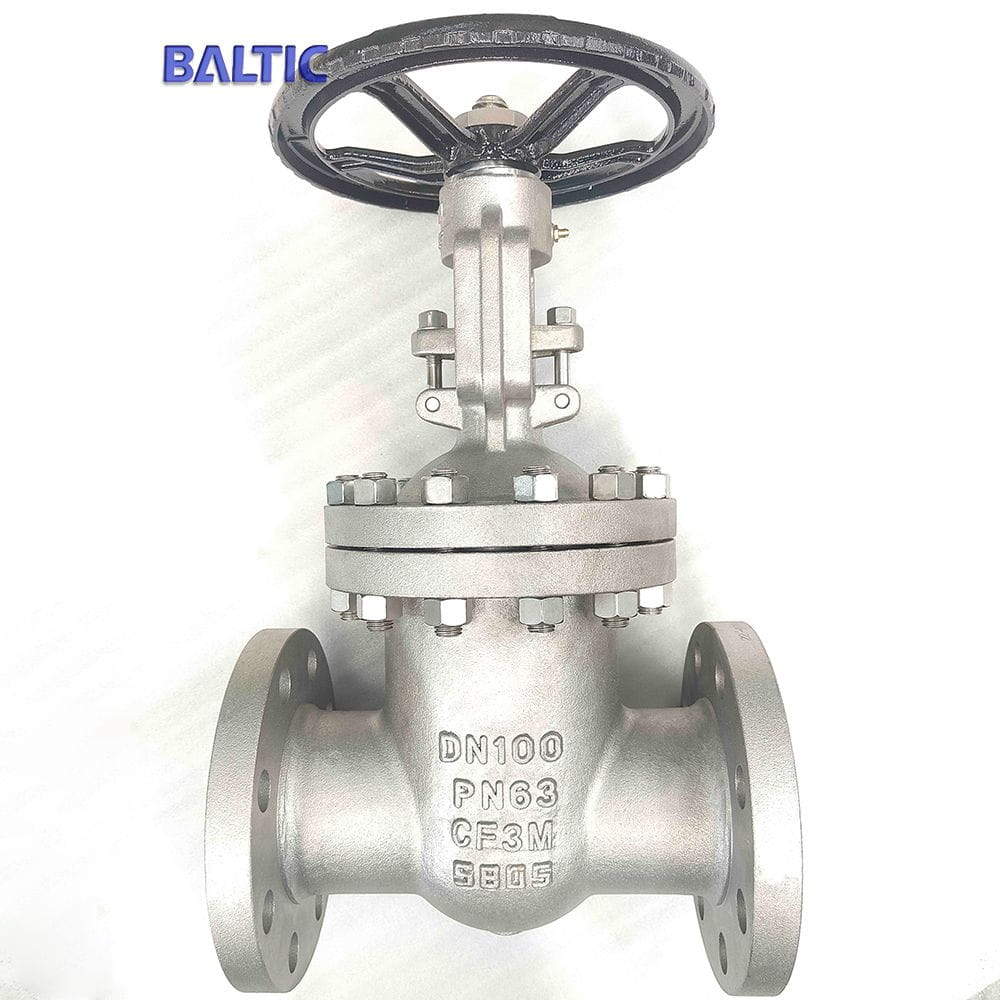

ASTM A351 CF3M Gate Valve, DN100, PN63, EN 1984

Explore our ASTM A351 CF3M Gate Valve Factory collection, featuring sizes ranging from DN100 to 4 inches, with pressure ratings of PN63 and Class 400 LB. Our valves are built to meet DIN 3352 and EN 1984 standards, boasting a flexible wedge design, threaded stem, and an SS 304 RTJ ring. Discover reliable and high-quality gate valves for your industrial needs.

Tags:

• DN100 Gate Valve
• 4 Inch Gate Valve
• PN63 Gate Valve
• Class 400 LB Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve, special material.
Design: EN 1984, DIN 3352
Material: ASTM A351 CF3M.
Nominal Size: DN100
Nominal Pressure: PN63
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Flexible wedge
Full bore
Bolted bonnet type
Pressure seal bonnet

For pressure seal bonnet type:
Threaded stem
Medium insulation
Preventing corrosion
SS 304 RTJ ring
Long service
Metal sealing
Bonnet gasket

Technical Parameters and Characteristics
Product type: Gate valve.
Material: ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A216 WCB, ASTM A216 WCC, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CF8, ASTM A890 4A (CD3MN), ASTM A890 6A (CD3MWCuN), ASTM A890 5A (CE3MN), CN3MN, CK3MCUN, CN7M, ASTM B148 C95800, ASTM B148 C95500
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃  -  573℃.
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
Operation: Hand wheel, gearbox, electric
