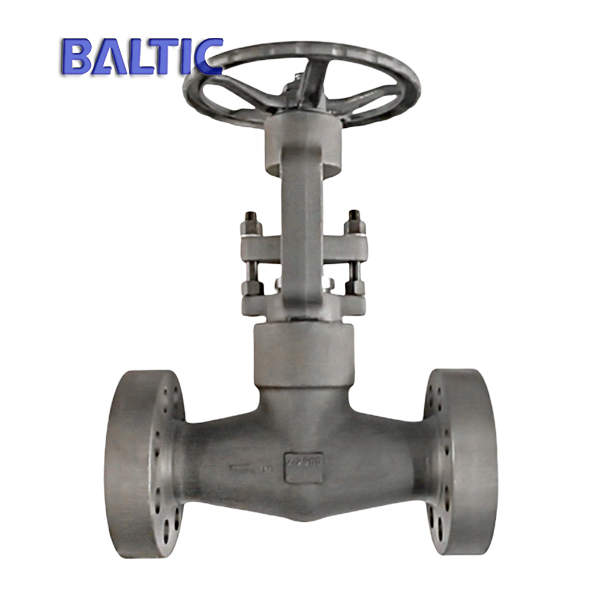

ASTM A350 LF2 Forged Globe Valve, 2 Inch, Class 2500 LB, RF, PSB

Key Specifications / Features

Model No.: Hits: 156

ASTM A350 LF2 Globe Valve Supplier in China: ASTM A350 LF2 Forged Globe Valve, 2 Inch, Class 2500, RF, API 602, Pressure Seal Bonnet, Integral Flanged.

Request a quote Share

Tags:

Next: ASTM A182 F304H Forged Globe Valve, 1 Inch, 300 LB, RF, API 602

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Name: High pressure globe valve, pressure seal bonnet, with integral flange.
Design: API 602.
Body: ASTM A350 LF2.
Nominal size: 2 Inch.
Nominal class: 2500 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends
