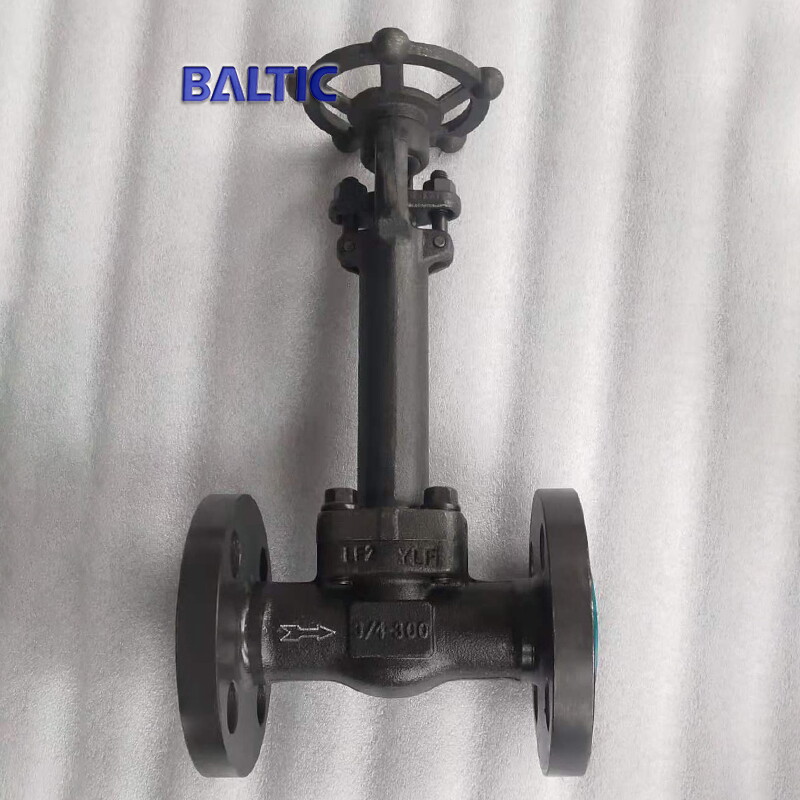

• ASTM A350 LF2 Cryogenic Globe Valve, 3/4 Inch, 300 LB, RF
ASTM A350 LF2 Cryogenic Globe Valve, 3/4 Inch, 300 LB, RF

ASTM A350 LF2 Cryogenic Globe Valve, 3/4 Inch, 300 LB, RF

ASTM A350 LF2 Cryogenic Globe Valve, 3/4 Inch, 300 LB, RF

Key Specifications / Features

Model No.: Hits: 6

Get top-quality ASTM A350 LF2 cryogenic globe valves from our reputable manufacturer. Available in 3/4 inch size, rated for 300 LB pressure, DN20 and PN50 specifications, meeting API 602 standards. Features include an extension stem, extended bonnet, drip plate, and RF flange for reliable performance in cryogenic applications.
Request a quote Share

Next: ASTM A182 F304 Cryogenic Globe Valve, 1 IN, 150 LB, API 602

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -46℃.
Description: with extension stem
Design: API 602.
Body: ASTM A350 LF2.
Nominal size: 3/4 Inch.
Nominal class: 300 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small-size cryogenic gate valve
Nominal diameter 1/4 - 4 Inch
Design temp. Down to -46℃
Design pressure Class 150 - 1500 LB
Material Stainless steel
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application LPG, LNG
Special treatment Deep cryogenic treatment.
Special test Impact test.
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 Short stroke for easy – quick open/close
Function 3 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4 The body seat could be a threaded seat or welded seat
Structure feature 1 Extended Bonnet.
Structure feature 2 With drip plate.
Structure feature 3 Fire Safety & Anti-static Design.
