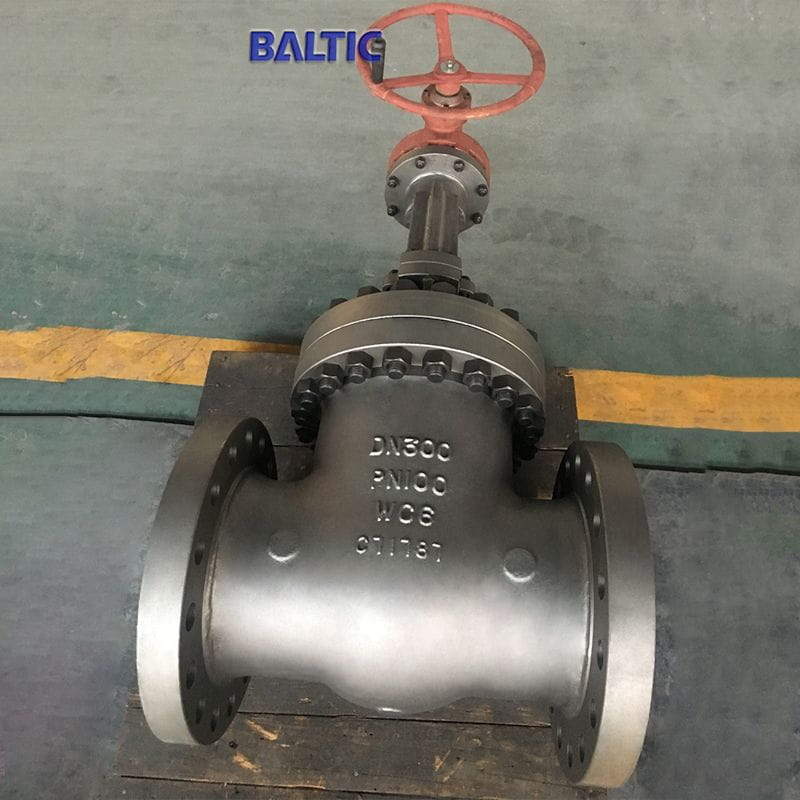

ASTM A217 WC6 Gate Valve, DN300, PN100, EN 1984, DIN 3352

Explore our high-quality ASTM A217 WC6 Gate Valve: Flexible Wedge Type, DN300, PN100, Class 600 LB, 12 Inch. Compliant with DIN 3352, EN 1984, 1.7357 standards, and precision-engineered to meet FF EN 558-1/line 26 specifications. Discover reliability and performance in one valve.

Tags:

• DN300 Gate Valve
• PN100 Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• Class 600 LB Gate Valve
• 12 Inch Gate Valve
• 1.7357 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: ASTM A217 WC6.
Nominal Size: DN300
Nominal Pressure: PN100
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Additional features: Opt for either a bolted bonnet setup or a pressure-seal bonnet arrangement, both featuring a flexible wedge and a full bore.

In the scenario of a pressure-seal bonnet: Employ a metallic bonnet gasket for enhanced sealing efficiency, utilizing an SS 304 Ring Type Joint (RTJ) to guarantee prolonged durability. Additionally, take measures to isolate the threaded stem from the medium to prevent potential corrosion.

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500, ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, CN3MN, CK3MCUN, CN7M
Operation: Hand wheel, gearbox, electric
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Applications: Power generation, crude oil processing, petrochemical production, deep-sea drilling, and chemical fabrication.
