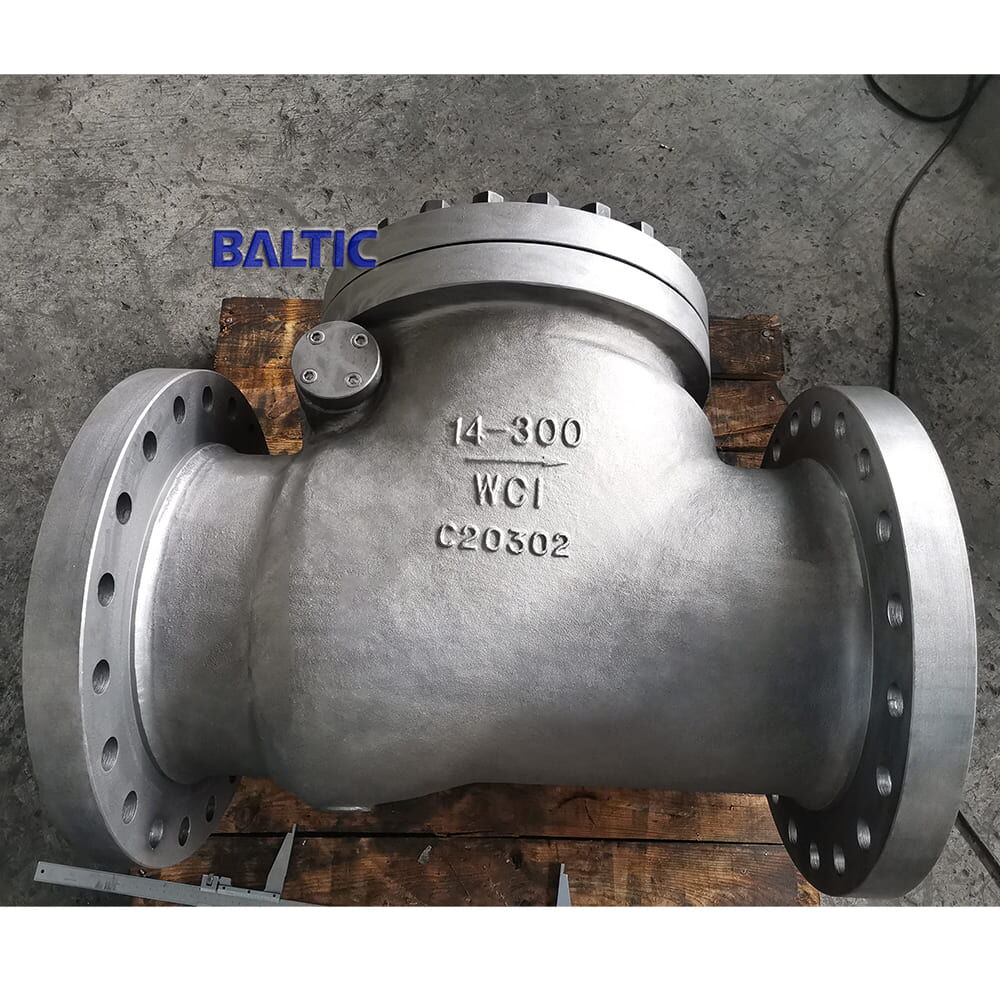

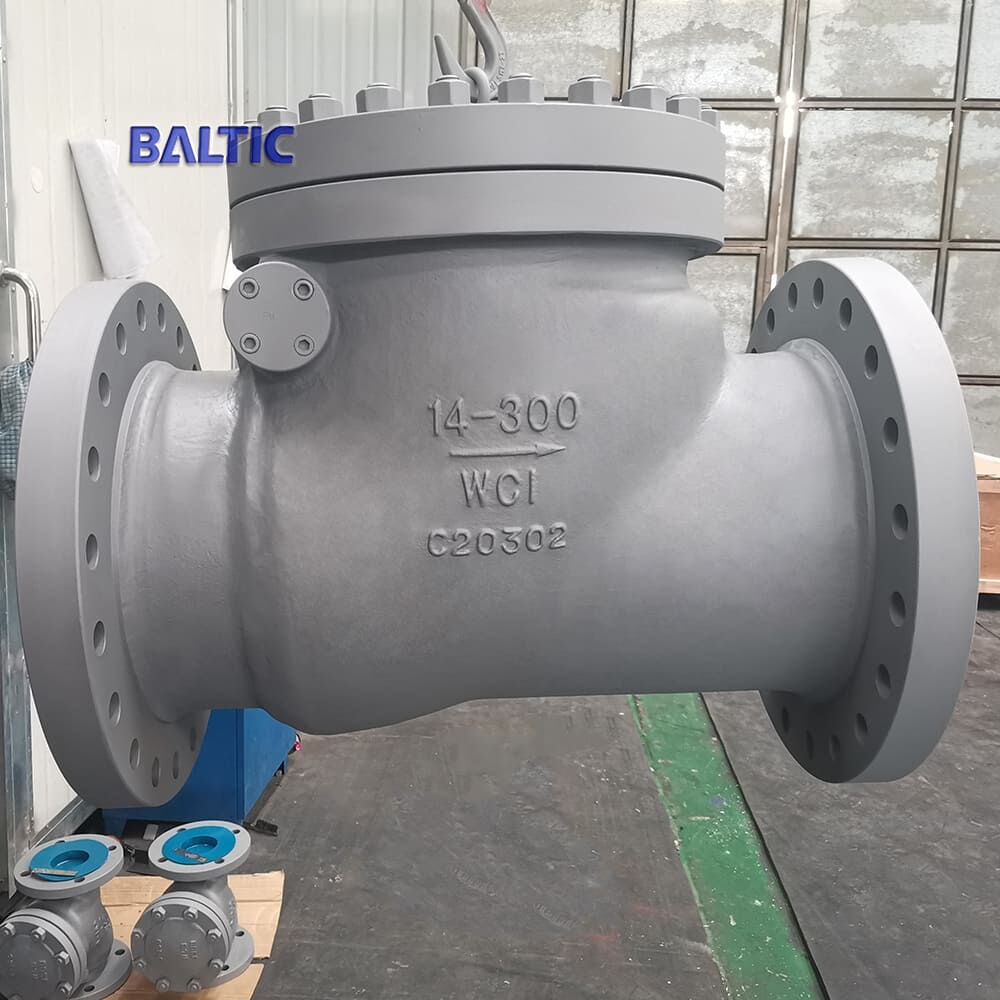

ASTM A217 WC1 Swing Check Valves, API 6D, 14 Inches, 300 LB

As a leading API 6D swing check valve manufacturer in China, we offer high-quality valves with a durable alloy steel ASTM A217 WC1 body. Designed for reliability and performance, this 14-inch valve is rated at Class 300 LB, DN400, and PN50, making it suitable for a range of industrial applications. Featuring RF flanged ends for easy installation and secure sealing, our swing check valves ensure efficient flow control and minimal maintenance. Trust our expertise for dependable valve solutions tailored to your needs.

Tags:

• ASTM A217 WC1 Check Valve
• API 6D Check Valve
• 14 Inch Check Valve
• Class 300 LB Check Valve
• Alloy Steel Check Valve

Valve Description
Name: Swing Type Check Valve
Design: API 6D – Full Bore
Body: ASTM A217 WC1
Nominal Size: 14 Inch, DN400
Nominal Class: Class 300 LB, PN50
Connection Ends: RF Flanged
Face-to-Face: As per ASME B16.10
Test and Inspection: API 598

Other Features:

Bolted Cover
API 6D – Full Bore, BS 1868 – Standard Bore
Can be configured with an inside shaft or outside shaft
Outside shaft options: lever with counterweight
Large-sized valves can be equipped with a hydraulic damping cylinder

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 - 24 Inch, DN50 - DN600
Design Pressure: Class 150 - 2500 LB, PN10 - PN420
Design Standards: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Material Options:
Carbon Steel: ASTM A216 WCB, ASTM A216 WCC
Alloy Steel: ASTM A217 WC1, WC6, WC9, C5, C12A
Stainless Steel: ASTM A351 CF8, CF8M, CF3M, CF8C
Specialty Alloys: CN3MN, CK3MCUN, CN7M, ASTM A890 4A, 5A, 6A
Bronze: ASTM B148 C95800, C95500

Connection Ends:
ASME B16.5
ASME B16.25
EN 1092 Series

Applications:

Ideal for use in:
Electric Power
Petroleum Refining
Petrochemical Engineering
Offshore Oil
Chemical Engineering
