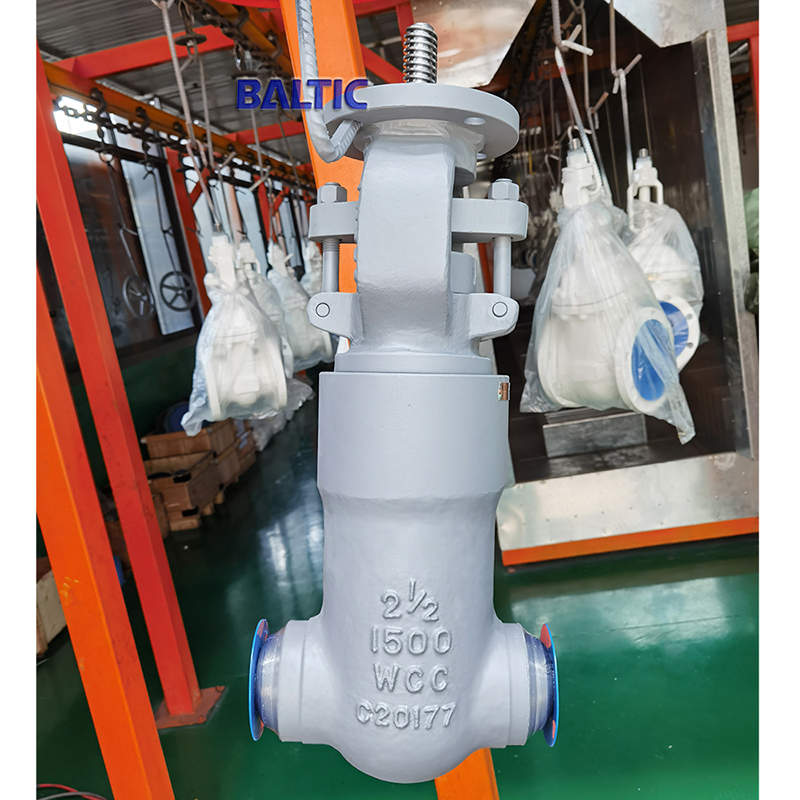

ASTM A216 WCC PSB Gate Valve, 2-1/2 Inch, 1500 LB, API 600

PSB is a leading Pressure Seal Bonnet Gate Valve Factory offering a top-quality ASTM A216 WCC valve. This valve has a size of 2-1/2 inches and is designed for 1500 LB pressure rating according to API 600 standards. With a DN65 and PN250 rating, it meets industry requirements. The valve features ASME B16.25 BW End connection, ensuring secure and reliable connections. It offers a full bore design and includes an RTJ Ring for enhanced sealing. Trust PSB for high-performance gate valves that meet international standards.

Tags:

• ASTM A216 WCC Gate Valve
• 2-1/2 Inch Gate Valve
• Class 1500 LB Gate Valve
• API 600 Gate Valve
• DN65 Gate Valve
• PN250 Gate Valve
• BW Gate Valve

Valve Description
Product name: Pressure seal bonnet (PSB) gate valve.
Design: API 600.
Material: ASTM A216 WCC.
Nominal size: 2 1/2 Inch.
Nominal class: 1500 LB.
Connection ends: BW - ASME B16.25.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other Features
· Bolted bonnet type or pressure seal bonnet.
· Flexible wedge, full bore.
· For pressure seal bonnet type:
The bonnet gasket is to be metal sealing, RTJ ring - SS 304 for long service.
The threaded stem does not contact the medium to avoid the possibility of corrosion.

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: Class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500.
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Operation: Handwheel, gearbox, electric.
Application: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering.
