ASTM A216 WCC Check Valves, API 6D, 24 Inch, Class 600 LB

As a leading API 6D swing check valve manufacturer in China, we offer high-quality valves with a carbon steel ASTM A216 WCC body. Our valves are available in 24 Inch, DN600 size, with a Class 600 LB, PN100 pressure rating. Featuring RF flanged ends for easy installation and lever operation for reliable control, these valves are designed to ensure optimal performance in various industrial applications. Trust us for durable, high-performance swing check valves meeting the highest industry standards.

Tags:

• ASTM A216 WCC Check Valve
• API 6D Check Valve
• 24 Inch Check Valve
• Class 600 LB Check Valve

24 Inch Swing Check Valve, ASTM A216 WCC, 24 Inch, Class 600 LB.

Valve Description:

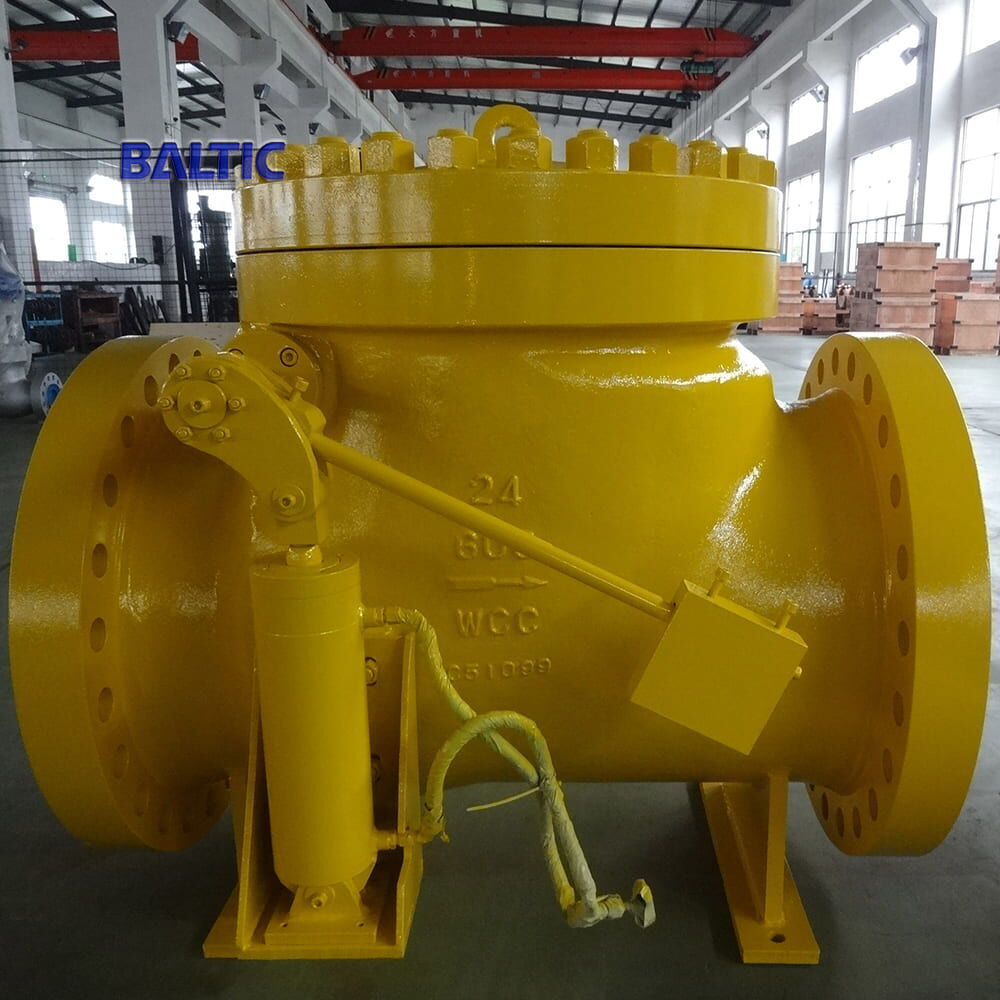

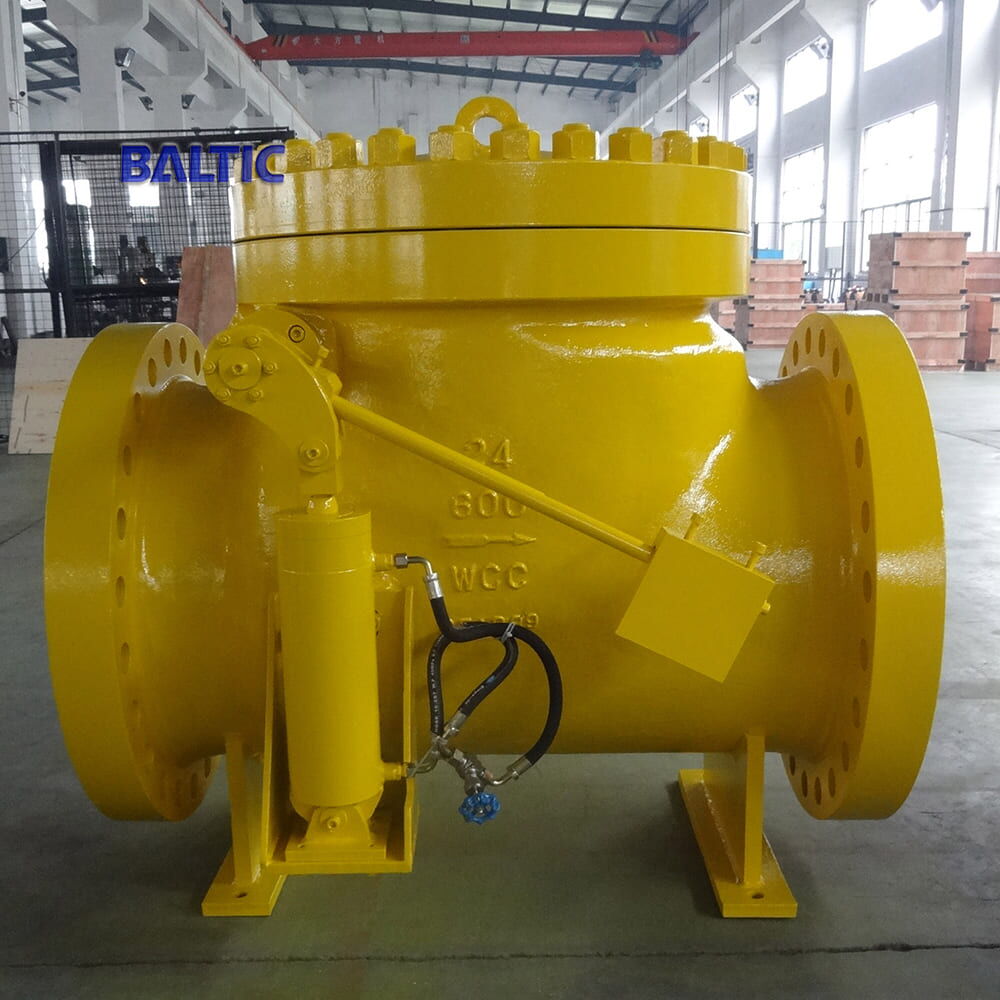

Name: Swing Type Check Valve with Lever + Counterweight + Hydraulic Damping Cylinder
Design: API 6D – Full Bore
Body: ASTM A216 WCC
Nominal Size: 24 Inch, DN600
Nominal Class: Class 600 LB, PN100
Connection Ends: RF Flanged Ends
Face to Face: As per ASME B16.10
Test and Inspection: API 598

Other Features:

Bolted cover
API 6D – Full Bore, BS 1868 – Standard Bore
Available with inside or outside shaft
Outside Shaft: Can be mounted with lever + counterweight
Large-sized check valves can be equipped with hydraulic damping cylinders

Technical Parameters and Characteristics:

Product Type: Swing Type Check Valve
Size Range: NPS 2 - 24 Inch, DN50 - DN600
Design Pressure: Class 150 - 2500 LB, PN10 - PN420
Design Standards: BS 1868, API 6D, DIN 3352
Design Temperature: -196°C to 593°C

Materials:
ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN)
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500

Connection Ends: ASME B16.5, ASME B16.25, EN1092 Series
Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
