ASTM A216 WCB Trunnion Ball Valve, 12 Inch, Class 600, Soft Seated

Key Specifications / Features

Model No.: Hits: 140

ASTM A216 WCB Trunnion Ball Valve Supplier in China: ASTM A216 WCB Trunnion Ball Valve, 12 Inch, Class 600 LB, Soft Seated, Side Entry, RF, API 6D.

Request a quote Share

Tags:

Next: Duplex Steel Ball Valve, ASTM A182 F51, 8 Inch, Class 150 LB, RF

Previous: Side Entry Soft Seated Ball Valve, WCB, 42 Inch, 600 LB, RF, API 6D

Detail Information

Quick Detail:
Side entry, soft seated ball valve.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 12 Inch.
Nominal class: 600 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +200℃.

ASTM A216 WCB Trunnion Ball Valve, 12 Inch, Class 600, Soft Seated

Key Specifications / Features

Detail Information

Similar Products

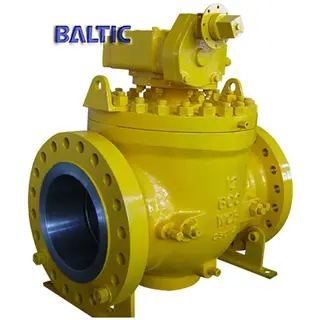

ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, RF Ends

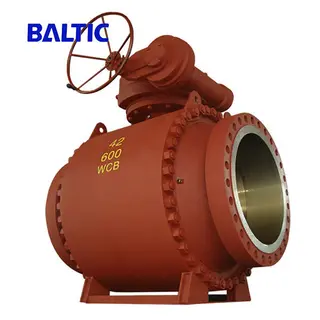

Side Entry Soft Seated Ball Valve, WCB, 42 Inch, 600 LB, RF, API 6D

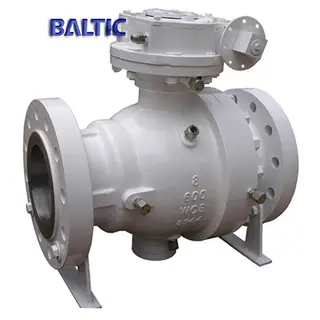

2-PC Trunnion Ball Valve, A216 WCB, API 6D, 8 Inch, 600 LB, RF

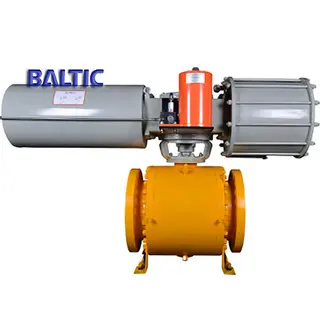

Pneumatic Actuated Trunnion Ball Valve, A182 LF2, 12IN CL150 RF
