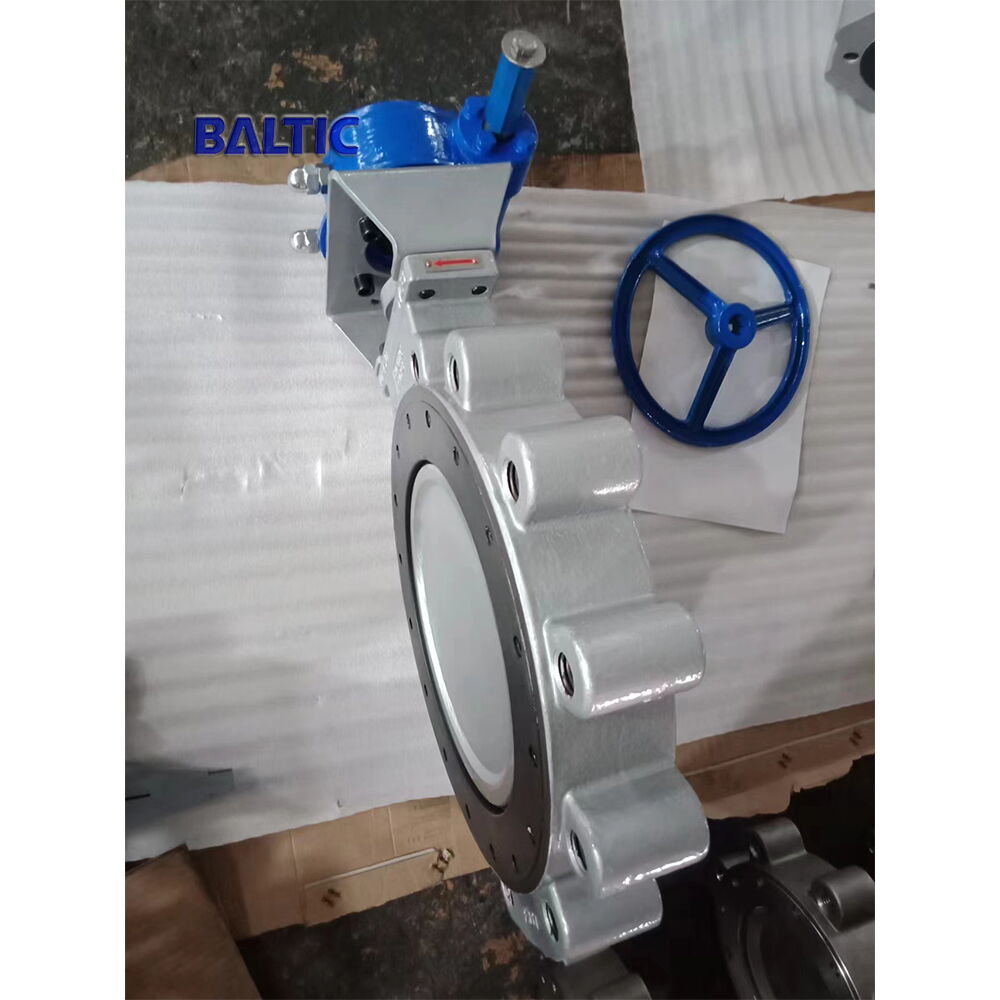

ASTM A216 WCB Lugged Butterfly Valve, 16 IN, CL150, API 609

Discover our ASTM A216 WCB lugged butterfly valve, featuring a 16-inch diameter (DN400), Class 150 LB, and PN20 pressure rating. Compliant with API 609 standards, this valve boasts an ASTM A351 CF8M disc, a durable 17-4PH stem, and a reliable RPTFE seat, making it ideal for various industrial applications.

Tags:

• ASTM A216 WCB Butterfly Valve
• 16 Inch Butterfly Valve
• Class 150 LB Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: 16 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator
to be done ANTI-ACID paint coating
