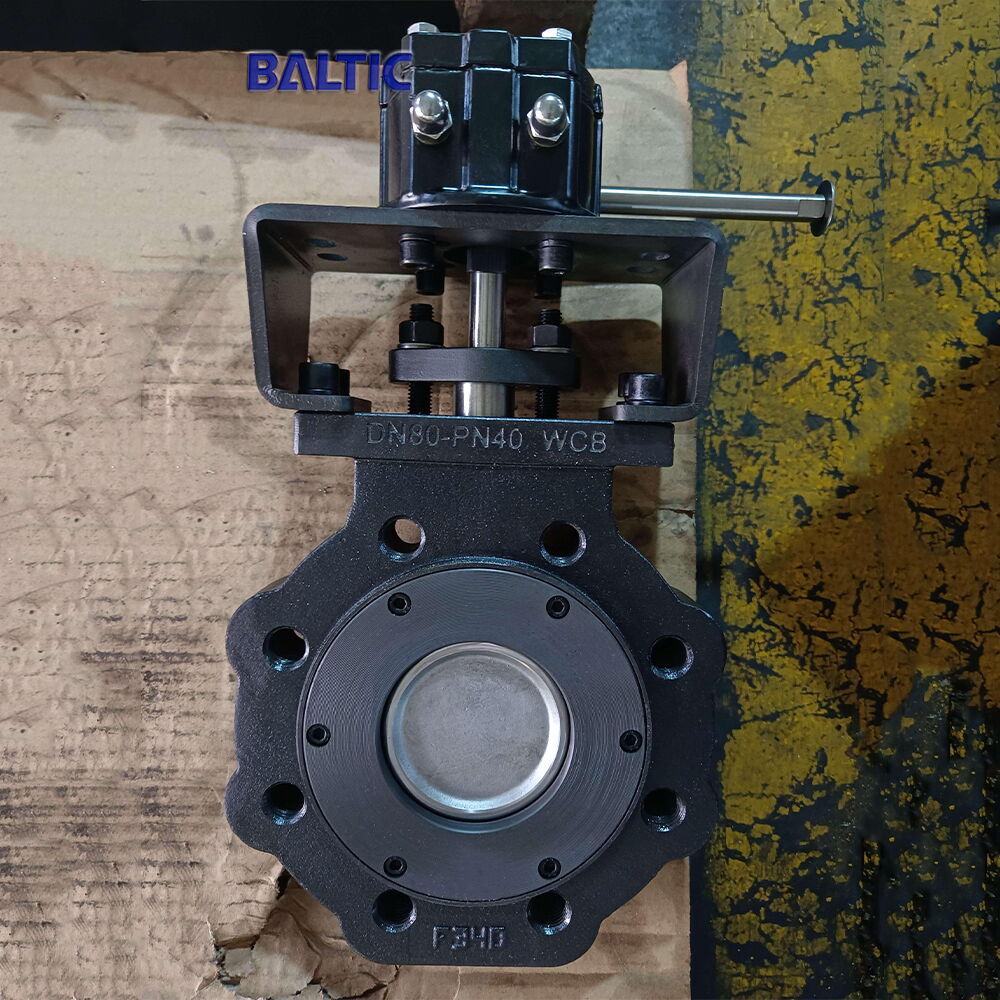

ASTM A216 WCB LUG Butterfly Valve, DN80, PN40, API 609

Find premium ASTM A216 WCB Lug Butterfly Valves in China, featuring DN80, PN40, 3-inch, Class 300 LB, API 609 compliance, ASTM A351 CF8M disc, 17-4PH stem, and RPTFE seat for reliable industrial performance.

Tags:

• ASTM A216 WCB Butterfly Valve
• DN80 Butterfly Valve
• PN40 Butterfly Valve
• API 609 Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: DN80.
Nominal class: PN40.
Connection ends: LUG type.
Face to face: EN558/Row 20.
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW
Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
