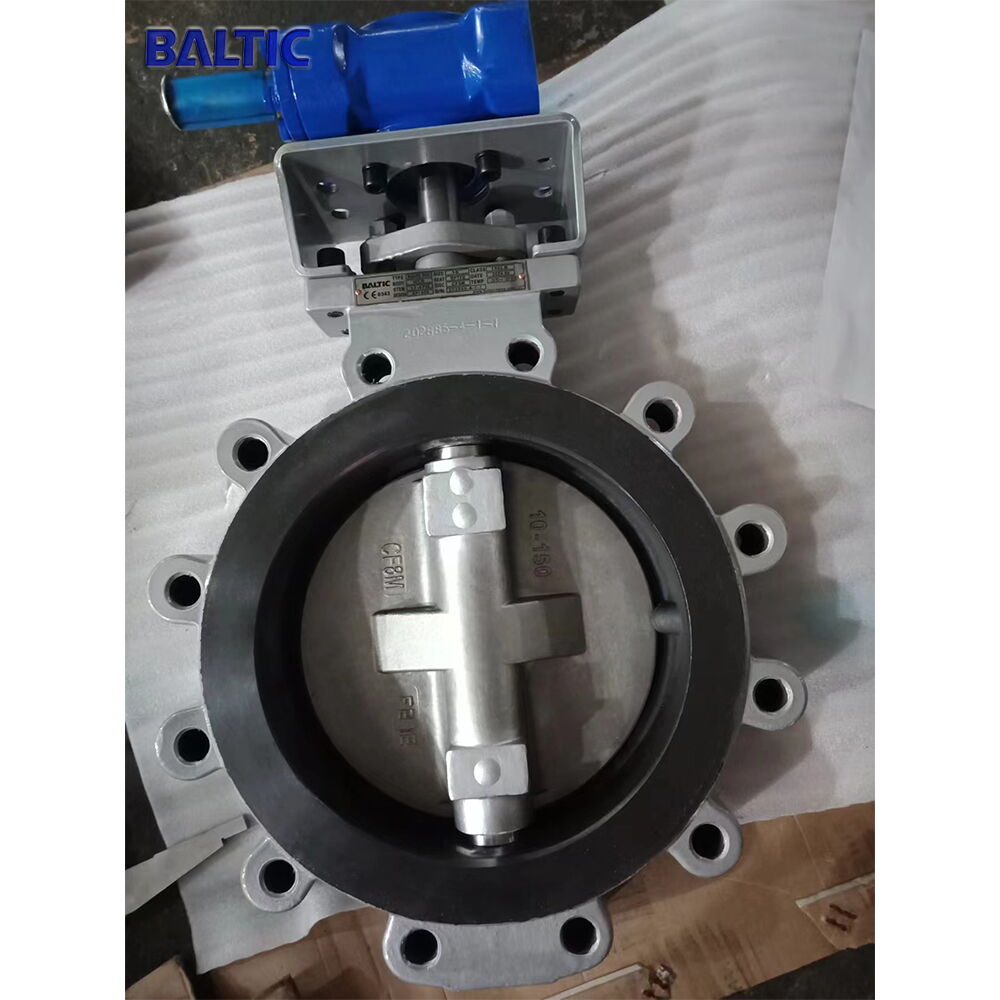

• ASTM A216 WCB Lug Butterfly Valve, 10 Inch, 150 LB, API 609

ASTM A216 WCB Lug Butterfly Valve, 10 Inch, 150 LB, API 609

ASTM A216 WCB Lug Butterfly Valve, 10 Inch, 150 LB, API 609

Key Specifications / Features

Model No.: Hits: 8

Discover the ASTM A216 WCB Lug Butterfly Valve, designed with a robust bracket, gearbox, and hand wheel. This 10-inch valve meets API 609 standards and is rated Class 150 LB. Featuring an ASTM A351 CF8M disc, a durable 17-4PH stem, and an RPTFE seat, it ensures reliable performance and longevity in various applications. Ideal for both industrial and commercial use, this valve is the perfect choice for efficient flow control.
Request a quote Share

Detail Information

Name: LUG type Butterfly Valve with Bracket + Gearbox + HW
Design: API 609.
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: 10 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator
to be done ANTI-ACID paint coating
