ASTM A216 WCB Butterfly Valve, DN700, PN10, API 609, Wafer

High-quality ASTM A216 WCB butterfly valve with ISO 5211 top flange, compliant with API 609. Features include DN700, PN10, ASTM A351 CF8M disc, 17-4PH stem, RPTFE seat, and wafer end design. Ideal for industrial fluid control applications.

Tags:

• DN700 Butterfly Valve
• PN10 Butterfly Valve
• API 609 Butterfly Valve

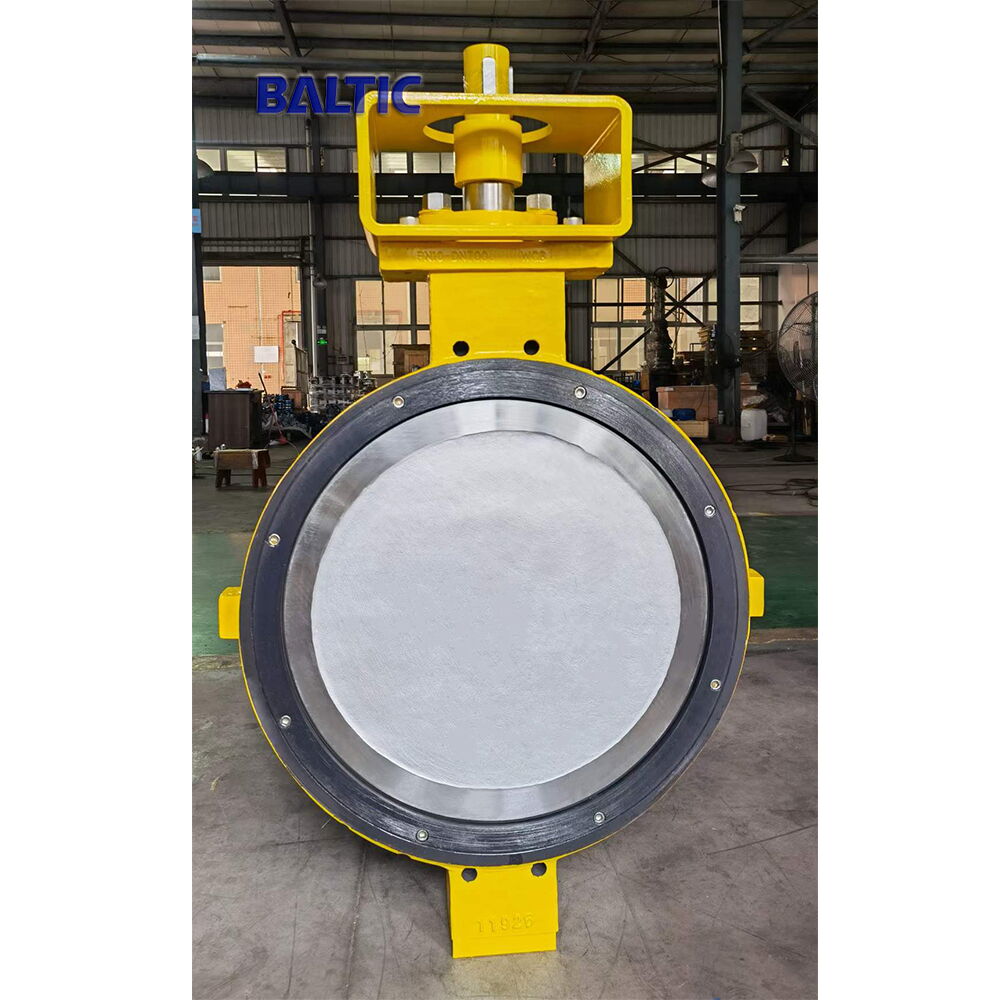

Name: Wafer-type Butterfly Valve with Bracket + ISO top flange 5211
Design: API 609
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: DN700.
Nominal class: PN10.
Connection ends: WAFER type.
Face to face: EN558/Row 20.
Test and inspection: API 598.

High-Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi-Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL K500
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
