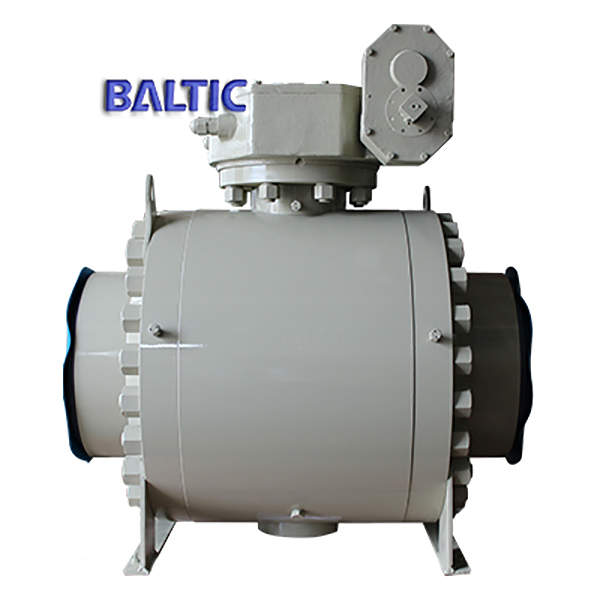

• ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF
ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF

ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF

ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, 600 LB, RF

Key Specifications / Features

Model No.: MSBV-02 Hits: 107

China ASTM A182 LF2 Metal Seat Ball Valve Supplier Baltic Offers ASTM A182 LF2 Metal Seat Ball Valve, API 6D, 28 Inch, Class 600 LB, RF Flanged Ends.
Request a quote Share

Next: API 6D Metal Seated Ball Valve, DN400, PN50, A105, FF ASME B16.10

Previous: ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF

Detail Information

Valve description:
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A182 LF2.
Nominal size: 28 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Metal Seated Ball Valve
Nominal diameter 1/2" - 48"
Design temp. -196℃ - 593℃
Design pressure class 150 - 2500
Material A105, LF2, F316, WCB, LCB, CF8M
Design standard API 6D, ASME B16.34
Face to face ASME B16.10
End ASME B16.5 / ASME B16.25
Test standard API 598, ISO 5208
Operation level, worm gear, electric, pneumatic
Application oil, gas, coal, chemical industries
Feature 1 ball + seat sealing surface coating hardness material
Feature 2 spring support seat ring, stable sealing design
Feature 3 supporting plate (trunnion) construction, light operating torque value, long life
Feature 4 fire safe design
Feature 5 spring Protection
Feature 6 full bore, reduce bore
