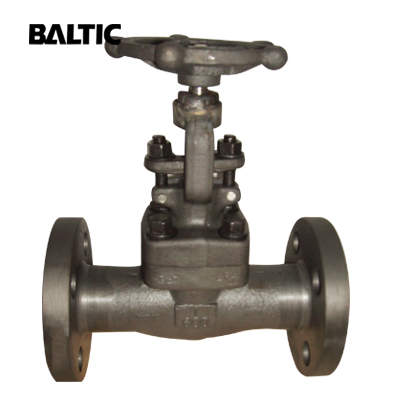

ASTM A182 LF2 Forged Steel Gate Valve, 1 Inch, CL600, RF

Key Specifications / Features

Model No.: 3-1 Hits: 400

China ASTM A182 LF2 Forged Steel Gate Valve Supplier Offers Small Forged Steel Gate Valve, ASTM A182 LF2, 1 Inch, Class 600, API 602, RF, ASME B16.10.

Request a quote Share

Tags:

Next: API 602 Small Size Gate Valve, 3/4IN, CL600, A105N, RF Flanged

Previous: ASTM B148 C95800 Gate Valve, 1.5 Inch, Class 300, API 602, RF

Detail Information

Valve description:
Name: Small size gate valve with integral flanged ends.
Design: API 602.
Body: ASTM A182 LF2.
Nominal size: 1 Inch.
Nominal class: 600 LB.
Connection ends: RF flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve
Nominal diameter	1/4” ～ 2”
Design temp.	-196℃ ～ 593℃
Design pressure	Class 150 ～ 2500
Material	Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, RF, RTJ
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, tap water engineering, chemical engineering,
Function 1	Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	solid wedge
Function 3	Full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends
