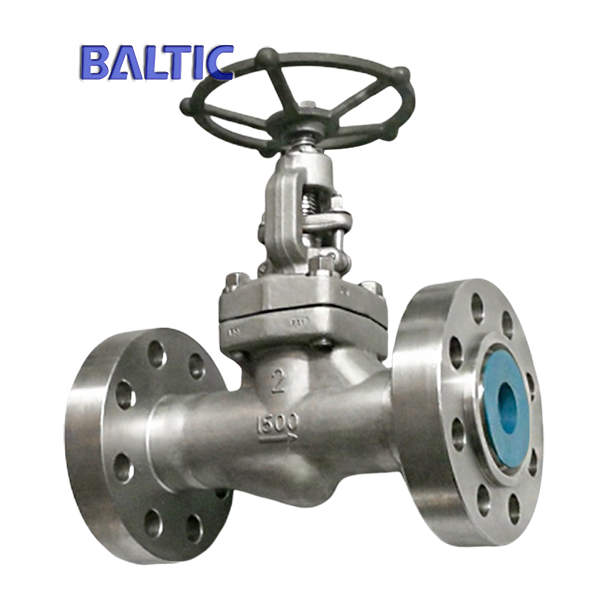

ASTM A182 F51 High Pressure Forged Globe Valve, 2 Inch, 1500 LB, RF

Key Specifications / Features

Model No.: Hits: 204

ASTM A182 F51 Forged Globe Valve Manufacturer in China: Forged Steel ASTM A182 F51 Globe Valve, 2 Inch, High Pressure Class 1500 LB, RF, API 602.

Request a quote Share

Tags:

Next: ASTM A105N Forged Globe Valve, 1 Inch, 300 LB, RF, Integral Flanged

Previous: ASTM A182 F304L Forged Globe Valve, 1 1/2 Inch, CL300, RF, API 602

Detail Information

Name: High pressure globe valve.
Design: API 602.
Body: ASTM A182 F51.
Nominal size: 2 Inch.
Nominal class: 1500 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends, welded on flanged ends
