ASTM A182 F316L Side Entry Ball Valve, 1 Inch, 800 LB, SW

Looking for a side entry ball valve supplier? Our valve is made from ASTM A182 F316L material and has a size of 1 inch (DN25) with a pressure rating of Class 800 LB (PN130). It is designed according to API 608 standards and is available in sizes ranging from DN15 to DN800 (PN16 - PN250). This three-piece body valve features SW end connections for easy installation and maintenance. Contact us today to learn more about our high-quality ball valve solutions.

Tags:

• ASTM A182 F316L Ball Valve
• Side Entry Ball Valve
• 1 Inch Ball Valve
• DN25 Ball Valve
• Class 800 LB Ball Valve
• PN130 Ball Valve
• API 608 Ball Valve
• 3PC Ball Valve

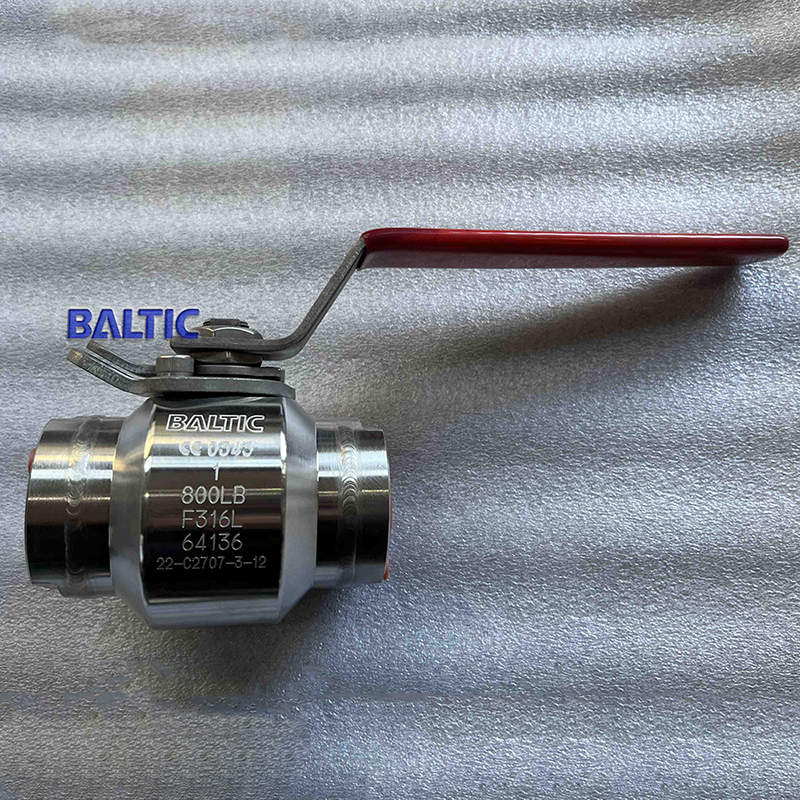

Side entry welded body ball valve, 3-PC body, NPS 1, 800 LB, F316L, SW.

Valve description:
Ball valve with Hand Lever.
Design: API 608.
Body: ASTM A182 F316L.
Nominal size: 1 inch.
Nominal class: 800 lbs.
End Connection: SW as per ASME B16.11.
Face to face: as per MFG STD.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: NPT, SW, BW, Flanged.
Pressure range: Class 150 - 1500 LB (PN16 - PN250).
Working temperature: -46℃ - +200℃.
