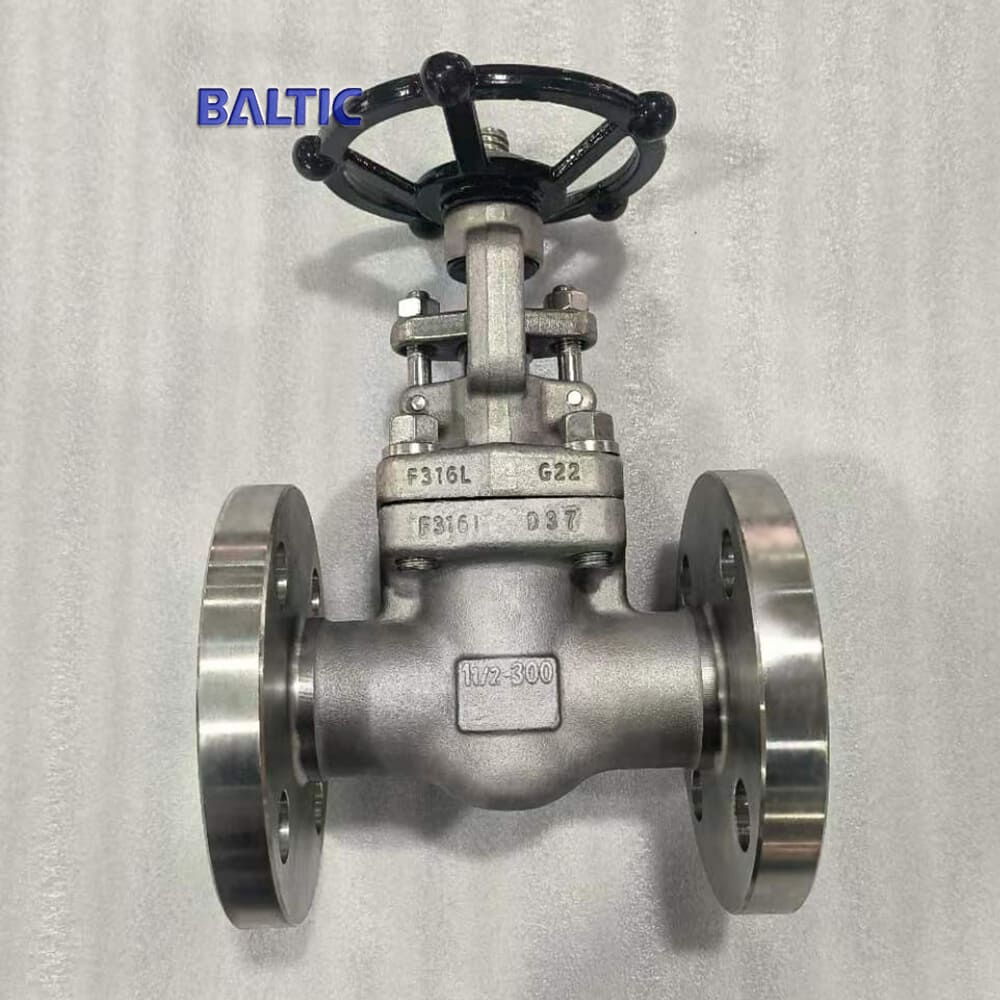

ASTM A182 F316L Gate Valve, API 602, 1-1/2 Inch, CL300, DN40

Name: ASTM A182 F316L Gate Valve, API 602, 1-1/2 Inch, CL300, DN40
SKU: bv-gtv-20250312-06
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: BV-GTV-20250312-06 Hits: 1

As a trusted stainless steel gate valve supplier, we provide high-quality API 602 gate valves designed for reliable performance in demanding applications. This model features a robust ASTM A182 F316L stainless steel body, offering superior corrosion resistance and durability. With a 1-1/2 inch size, Class 300 LB pressure rating, and flanged ends, it ensures secure and efficient flow control. Engineered to meet industry standards, this valve is ideal for various industrial applications, including chemical processing, oil and gas, and marine environments.

Request a quote Share

Tags:

Next: 2 Inch Gate Valves, API 602, Stainless Steel F316L, 300 LB

Previous: 1 Inch Gate Valve, API 602, ASTM A105N, 300 LB, Flanged Ends

Detail Information

API 602 Gate Valves, 1-1/2 Inch, Class 300 LB, Flanged.

Valve Description:
Product Name: Small Size Gate Valve, Integral Flange.
Design Standard: API 602
Body Material: ASTM A182 F316L
Nominal Size: 1-1/2 Inch, DN40
Nominal Class: Class 300 LB, PN50
End Connection: Flange Ends
Face to Face: ASME B16.10
Test and Inspection: API 598

Technical Parameters And Characteristics

Product Item	Small Size Gate Valve
Nominal Diameter	1/4 Inch - 4 Inch
Design Temperature	-196°C - 573°C
Design Pressure	Class 150 LB - Class 4500 LB
Material	Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard	API 602, BS 5352
Face to Face	Manufacturer Standard, ASME B16.10
Connection End	NPT, SW, BW, Flange
Test Standard	API 598, ISO 5208
Operation	Hand Wheel, Electric
Application	Power Station, Petroleum, Chemical Engineering
Function 1	Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2	Solid Wedge
Function 3	Full Bore, Reduced Bore
Function 4	Integral Flanged Ends, Welded on Flanged Ends
