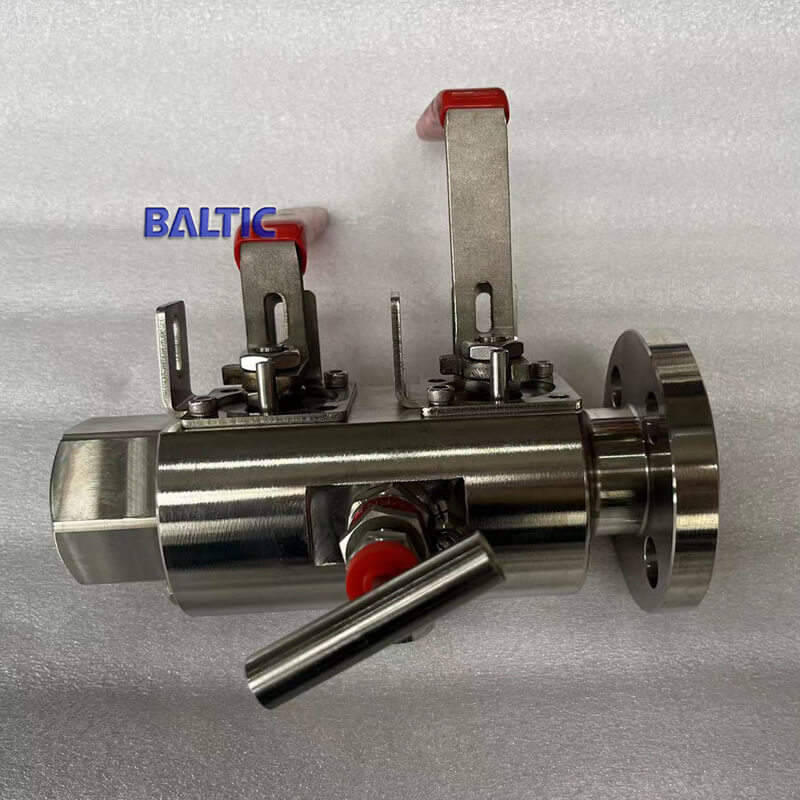

ASTM A182 F316L DBB Ball Valve, 1 Inch, 300 LB, RF X F-NPT

Shop high-quality ASTM A182 F316L DBB Ball Valve at our trusted fabrication facility. This valve features a 1-inch NPS size, suitable for Class 300 LB applications. It conforms to DN25 and PN50 standards, as well as EEMUA 182 and ASME B16.34 specifications. The valve is designed as a one-piece unit, and it comes with RF flanged connections and F-NPT ends. Ensure reliable performance with this precision-engineered ball valve.

Tags:

• ASTM A182 F316L Ball Valve
• 1 Inch Ball Valve
• Class 300 LB Ball Valve
• RF Ball Valve
• ASME B16.34 Ball Valve
• EEMUA 182 Ball Valve
• DN25 Ball Valve
• PN50 Ball Valve

DBB ball valve, NPS 1, 300 LB, F316L, RF X F-NPT.

Valve description:
DBB ball valve (ball/needle/ball), with lever.
Design: EEMUA 182, ASME B16.34.
Body Pattern: one piece.
Body: ASTM A182 F316L.
Nominal size: 1 Inch.
Nominal class: 300 LB.
End Connection: RF flanged X F-NPT.
Face to face: as per manufacturer's standard.
Test and inspection: EEMUA 182, API 598.
Operation: lever.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: Flanged x Flanged, Flanged X NPT.
Pressure range: Class 150 - 3000 LB, 15000 PSI.
Working temperature: -46℃ - +350℃.
