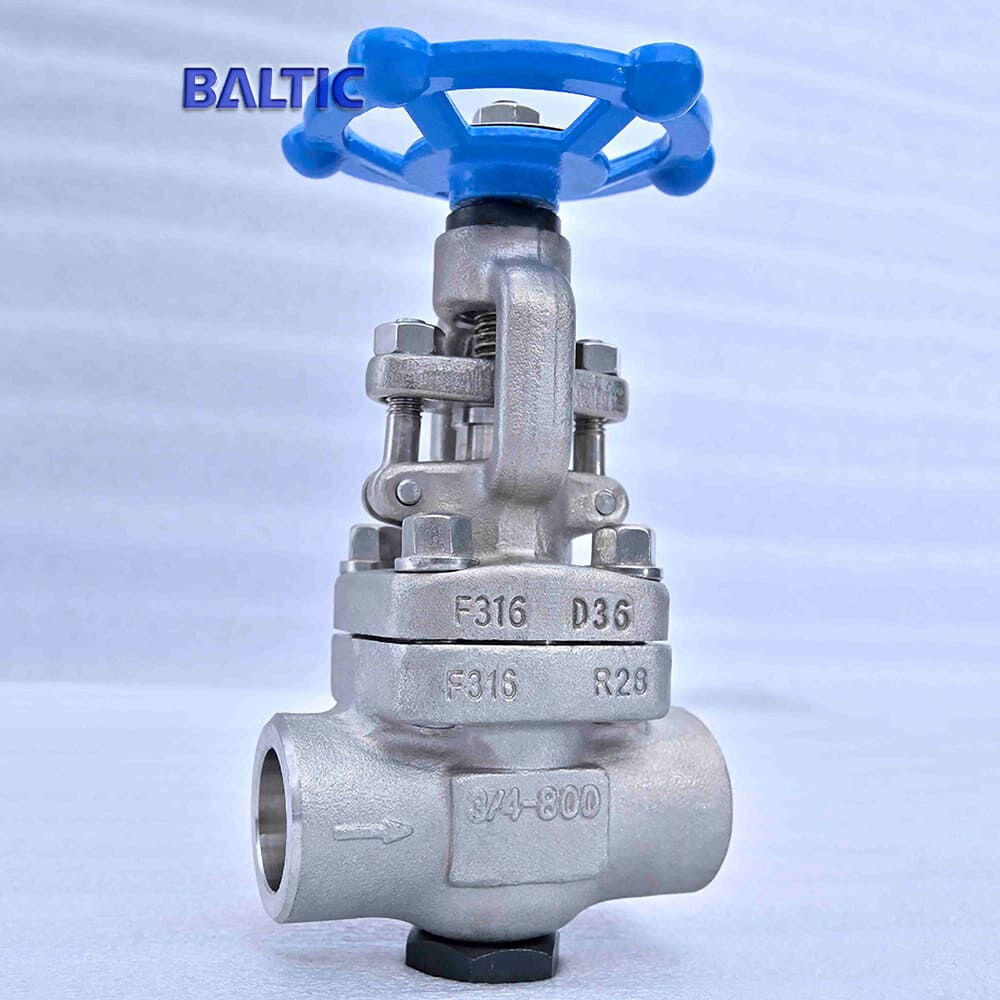

ASTM A182 F316 Globe Valves, API 602, 3/4 Inch, CL800, SW

Name: ASTM A182 F316 Globe Valves, API 602, 3/4 Inch, CL800, SW
SKU: bv-glv-20250305-02
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: BV-GLV-20250305-02 Hits: 10

As a trusted stainless steel globe valve supplier from China, we provide API 602-designed valves engineered for high-performance applications. Our 3/4-inch (DN20) globe valve is rated for Class 800 LB (PN130) and features socket weld (SW) ends for secure installation. Built from durable stainless steel, it ensures excellent corrosion resistance and longevity. Tested and inspected to API 598 standards, our valves guarantee reliable sealing and efficient flow control. Ideal for oil, gas, and industrial systems, they meet stringent quality requirements for high-pressure operations.

Request a quote Share

Tags:

Next: Class 800 LB Globe Valve, API 602, A182 F316, 1-1/2 Inch, SW

Previous: API 602 Globe Valves, A182 F316, 1/2 IN, CL800, Reduced Bore

Detail Information

Class 800 LB Globe Valve, ASTM A182 F316, 3/4 Inch, SW.

Valve Description:
Name: Small Size Globe Valve, Reduce Bore.
Design: API 602
Body: ASTM A182 F316
Nominal Size: 3/4 Inch, DN20
Nominal Class: Class 800 LB
End Connection: SW
Face to Face: As Per Manufacturer Standard
Test and Inspection: API 598

Technical Parameters And Characteristics

Product	Small Size Globe Valve
Nominal Diameter	1/4 Inch - 4 Inch
Design Temp.	-196°C - 573°C
Design Pressure	Class 150 LB - Class 4500 LB
Material	Forged Carbon Steel, Stainless Steel, Alloy Steel, Bronze
Design Standard	API 602, BS 5352
Face to Face	Manufacture Standard, ASME B16.10
Connection End	NPT, SW, BW, Flange
Test Standard	API 598, ISO 5208
Operation	Hand Wheel, Electric
Application	Power Station, Petroleum, Chemical Engineering
Function 1	Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet
Function 2	Plug Disc, Needle Disc
Function 3	Full Bore, Reduce Bore
Function 4	Integral Flanged Ends, Welded on Flanged Ends
