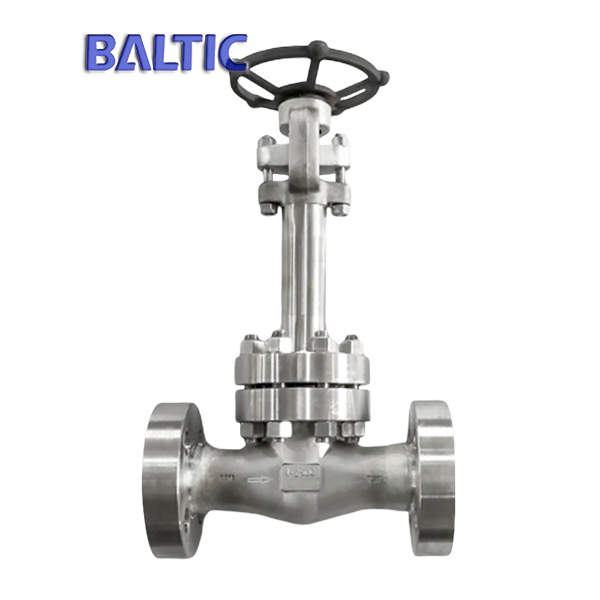

• ASTM A182 F316 Forged Globe Valve, 1 Inch, CL2500, Extension Stem

ASTM A182 F316 Forged Globe Valve, 1 Inch, CL2500, Extension Stem

ASTM A182 F316 Forged Globe Valve, 1 Inch, CL2500, Extension Stem

Key Specifications / Features

Model No.: Hits: 90

ASTM A182 F316 Forged Globe Valve Supplier in China: Forged ASTM A182 F316 Globe Valve, 1 Inch, CL2500, High Pressure, Extension Stem, RF, API 602.
Request a quote Share

Detail Information

Name: High pressure globe valve, with extension stem.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 1 Inch.
Nominal class: 2500 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size globe valve
Nominal diameter 1/4 Inch - 4 Inch
Design temp.  -196℃  - 573℃
Design pressure Class 150 - 4500
Material Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 plug disc, needle disc
Function 3 full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
