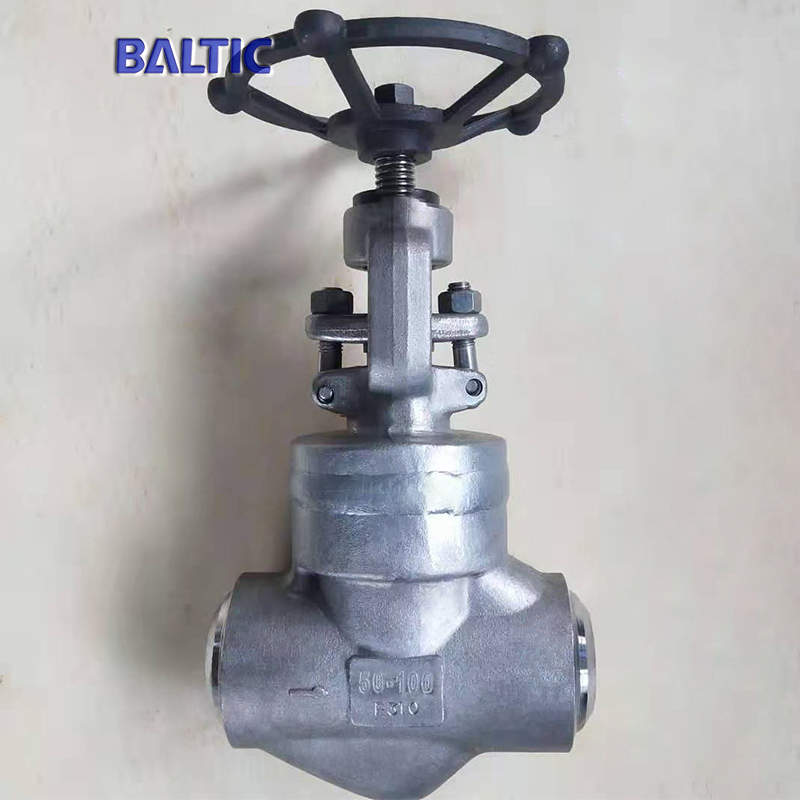

ASTM A182 F310 Globe Valve, DN50, PN100, API 602

ASTM A182 F310 Globe Valve Provider: DIN Standard Small Size Globe Valves, ASTM A182 F310, Welded Bonnet, DN50, 2 Inch, PN100, API 602, BW Ends.

Tags:

• DN50 Globe Valve
• PN100 Globe Valve
• API 602 Globe Valve
• BW Globe Valve
• DIN Globe Valve
• Small Size Globe Valve
• Welded Bonnet Globe Valves
• Pressure Seal Bonnet Globe Valve
• ASTM A182 F310 Globe Valves

Valve Description
Name: DIN standard small size globe valve, welded bonnet
Design: API 602
Body: ASTM A182 F310
Nominal size: DN50
Nominal class: PN100
End connection: BW
Face to face: as per manufacturing standard
Test and inspection: EN 12266-1

Technical parameters and characteristics
Product: Small size globe valve
Nominal diameter: 1/4 Inch - 4 Inch
Design temp.: -196℃ - 573℃
Design pressure: Class 150 - 4500 LB
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard: API 602, BS 5352
Face to face: Manufacture standard, ASME B16.10
Connection end: NPT, SW, BW, Flange
Test standard: API 598, ISO 5208
Operation: Handwheel, electric
Application: Power station, petroleum, chemical engineering
Function 1: Bolted bonnet, welted bonnet, pressure seal bonnet
Function 2: Plug disc, needle disc
Function 3: Full bore, reduced bore
Function 4: Integral flanged ends, welded on flanged ends
