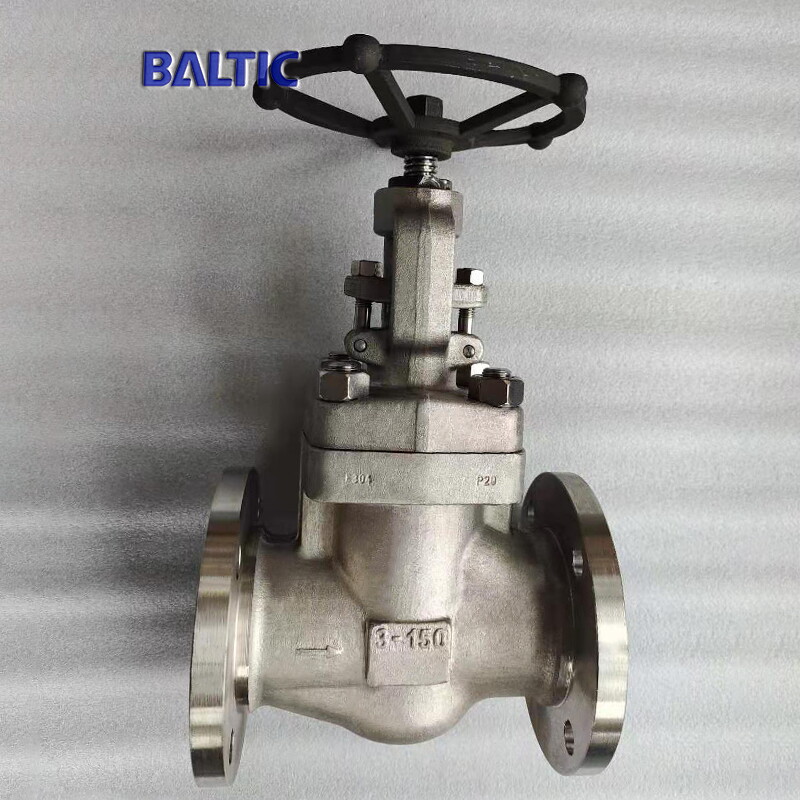

ASTM A182 F304 Globe Valve, 3 Inch, 150 LB, API 602, RF

Key Specifications / Features

Model No.: Hits: 7

Shop our selection of ASTM A182 F304 Globe Valves, featuring a 3-inch size, 150 LB pressure rating, DN80, and PN20 specifications, conforming to API 602 and BS 5352 standards. These valves boast a small size with RF integral flanged ends and are equipped with a handwheel or electric operation.

Request a quote Share

Tags:

Next: ASTM A182 F316 Globe Valve, 1/2 Inch, 300 LB, RF, API 602

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Valve description:
Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 3 Inch.
Nominal class: 150 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small-size globe valve
Nominal diameter	1/4 - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500 LB
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduced bore
Function 4	Integral flanged ends、welded on flanged ends

ASTM A182 F304 Globe Valve, 3 Inch, 150 LB, API 602, RF

Key Specifications / Features

Detail Information

Similar Products

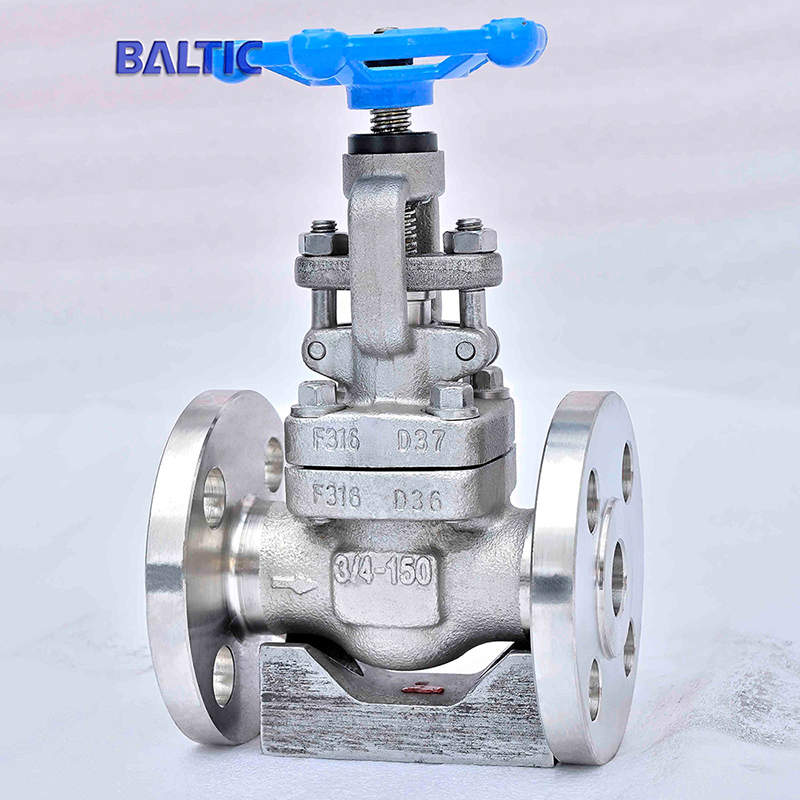

3/4 Inch 150 LB Globe Valve, ASTM A182 F316, API 602

Pressure Seal Bonnet Globe Valve, A105N, 3 IN, 1500 LB, SW

ASTM A182 F316 Y Globe Valve, 3 Inch, 2500 LB, API 602, RF

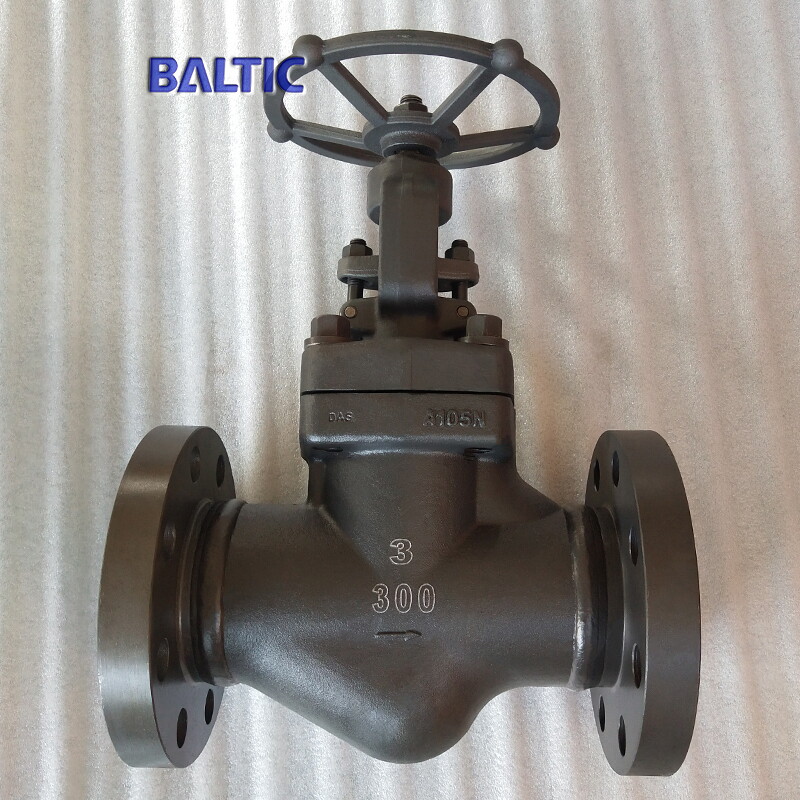

ASTM A105N Globe Valve, 3 Inch, 300 LB, API 602, RF
